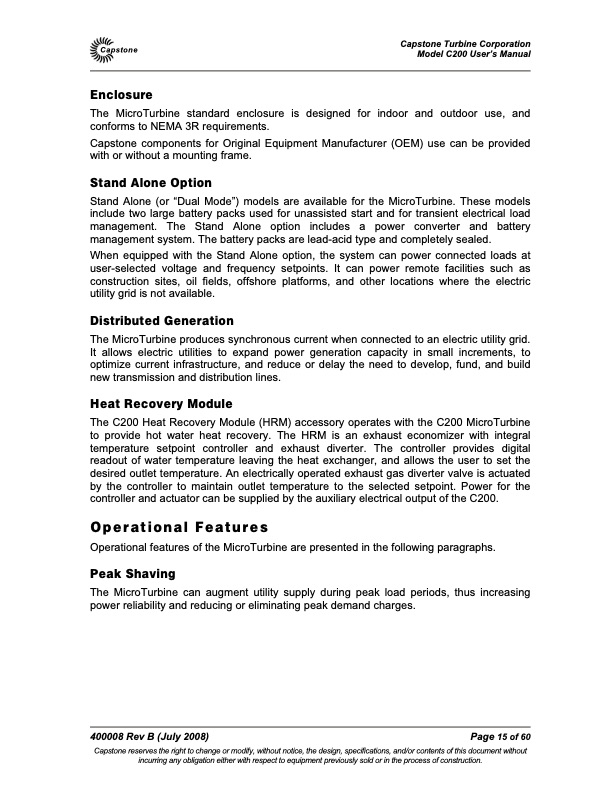

Text from PDF Page: 015
Capstone Enclosure Capstone Turbine Corporation Model C200 User’s Manual The MicroTurbine standard enclosure is designed for indoor and outdoor use, and conforms to NEMA 3R requirements. Capstone components for Original Equipment Manufacturer (OEM) use can be provided with or without a mounting frame. Stand Alone Option Stand Alone (or “Dual Mode”) models are available for the MicroTurbine. These models include two large battery packs used for unassisted start and for transient electrical load management. The Stand Alone option includes a power converter and battery management system. The battery packs are lead-acid type and completely sealed. When equipped with the Stand Alone option, the system can power connected loads at user-selected voltage and frequency setpoints. It can power remote facilities such as construction sites, oil fields, offshore platforms, and other locations where the electric utility grid is not available. Distributed Generation The MicroTurbine produces synchronous current when connected to an electric utility grid. It allows electric utilities to expand power generation capacity in small increments, to optimize current infrastructure, and reduce or delay the need to develop, fund, and build new transmission and distribution lines. Heat Recovery Module The C200 Heat Recovery Module (HRM) accessory operates with the C200 MicroTurbine to provide hot water heat recovery. The HRM is an exhaust economizer with integral temperature setpoint controller and exhaust diverter. The controller provides digital readout of water temperature leaving the heat exchanger, and allows the user to set the desired outlet temperature. An electrically operated exhaust gas diverter valve is actuated by the controller to maintain outlet temperature to the selected setpoint. Power for the controller and actuator can be supplied by the auxiliary electrical output of the C200. Operational Features Operational features of the MicroTurbine are presented in the following paragraphs. Peak Shaving The MicroTurbine can augment utility supply during peak load periods, thus increasing power reliability and reducing or eliminating peak demand charges. 400008 Rev B (July 2008) Page 15 of 60 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C200 User's Manual
PDF Search Title:
Capstone MicroTurbine Model C200 User's ManualOriginal File Name Searched:
400008B_C200_MicroTurbine_UM.pdfDIY PDF Search: Google It | Yahoo | Bing
