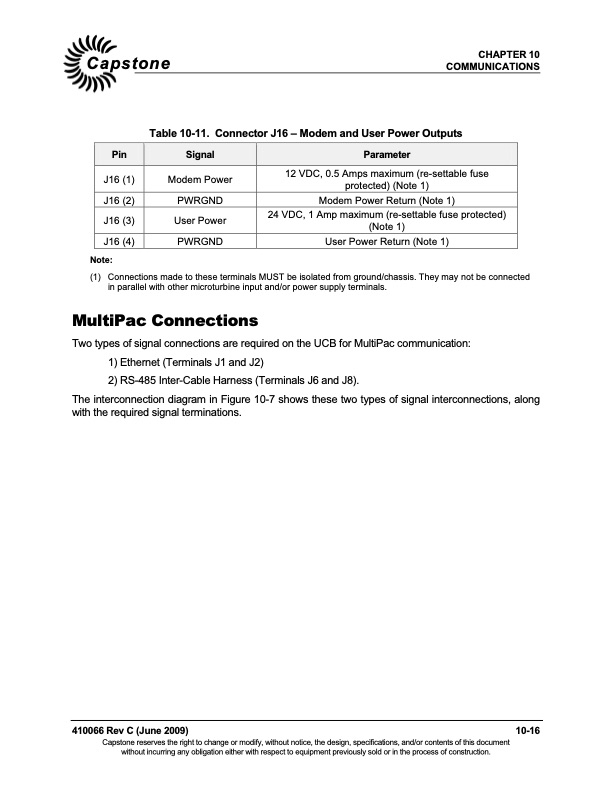

CHAPTER 10 Capstone COMMUNICATIONS J16 (1) J16 (2) J16 (3) J16 (4) Note: Modem Power PWRGND User Power PWRGND 12 VDC, 0.5 Amps maximum (re-settable fuse protected) (Note 1) Modem Power Return (Note 1) 24 VDC, 1 Amp maximum (re-settable fuse protected) (Note 1) User Power Return (Note 1) Table 10-11. Connector J16 – Modem and User Power Outputs Pin Signal Parameter (1) Connections made to these terminals MUST be isolated from ground/chassis. They may not be connected in parallel with other microturbine input and/or power supply terminals. MultiPac Connections Two types of signal connections are required on the UCB for MultiPac communication: 1) Ethernet (Terminals J1 and J2) 2) RS-485 Inter-Cable Harness (Terminals J6 and J8). The interconnection diagram in Figure 10-7 shows these two types of signal interconnections, along with the required signal terminations. 410066 Rev C (June 2009) 10-16 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE C200 MICROTURBINE TECHNICAL REFERENCE
