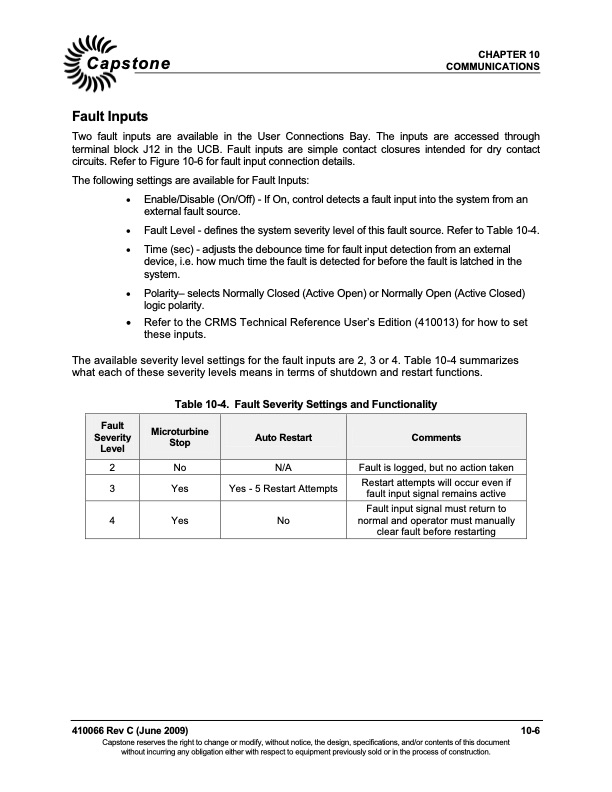

CHAPTER 10 Capstone COMMUNICATIONS Fault Inputs Two fault inputs are available in the User Connections Bay. The inputs are accessed through terminal block J12 in the UCB. Fault inputs are simple contact closures intended for dry contact circuits. Refer to Figure 10-6 for fault input connection details. The following settings are available for Fault Inputs: Enable/Disable (On/Off) - If On, control detects a fault input into the system from an external fault source. Fault Level - defines the system severity level of this fault source. Refer to Table 10-4. Time (sec) - adjusts the debounce time for fault input detection from an external device, i.e. how much time the fault is detected for before the fault is latched in the system. Polarity– selects Normally Closed (Active Open) or Normally Open (Active Closed) logic polarity. Refer to the CRMS Technical Reference User’s Edition (410013) for how to set these inputs. The available severity level settings for the fault inputs are 2, 3 or 4. Table 10-4 summarizes what each of these severity levels means in terms of shutdown and restart functions. Table 10-4. Fault Severity Settings and Functionality Fault Severity Level Microturbine Stop Auto Restart Comments 2 No N/A 3 Yes Yes - 5 Restart Attempts 4 Yes No Fault is logged, but no action taken Restart attempts will occur even if fault input signal remains active Fault input signal must return to normal and operator must manually clear fault before restarting 410066 Rev C (June 2009) 10-6 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE C200 MICROTURBINE TECHNICAL REFERENCE
