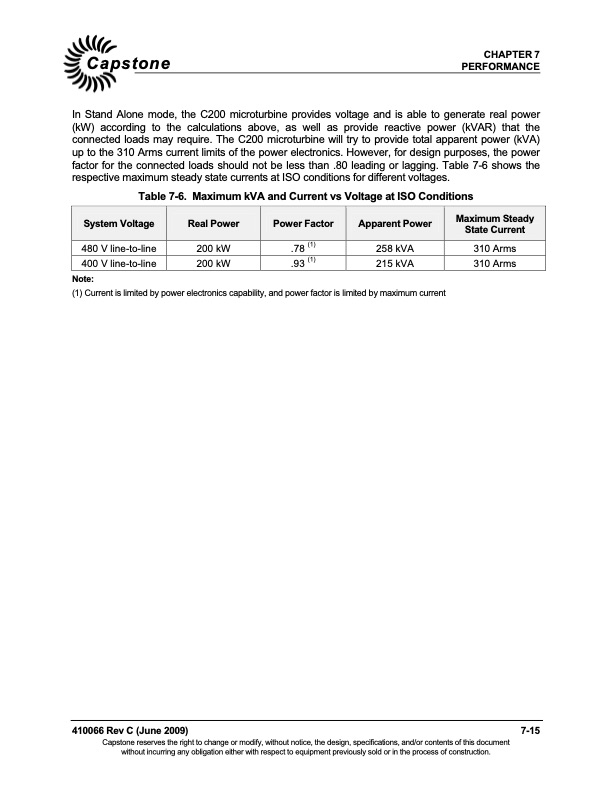

CHAPTER 7 Capstone PERFORMANCE In Stand Alone mode, the C200 microturbine provides voltage and is able to generate real power (kW) according to the calculations above, as well as provide reactive power (kVAR) that the connected loads may require. The C200 microturbine will try to provide total apparent power (kVA) up to the 310 Arms current limits of the power electronics. However, for design purposes, the power factor for the connected loads should not be less than .80 leading or lagging. Table 7-6 shows the respective maximum steady state currents at ISO conditions for different voltages. Table 7-6. Maximum kVA and Current vs Voltage at ISO Conditions System Voltage Real Power Power Factor Apparent Power Maximum Steady State Current 480 V line-to-line 200 kW .78 (1) 258 kVA 400 V line-to-line 200 kW .93 (1) 215 kVA Note: (1) Current is limited by power electronics capability, and power factor is limited by maximum current 310 Arms 310 Arms 410066 Rev C (June 2009) 7-15 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE C200 MICROTURBINE TECHNICAL REFERENCE
