PDF Publication Title:
Text from PDF Page: 048

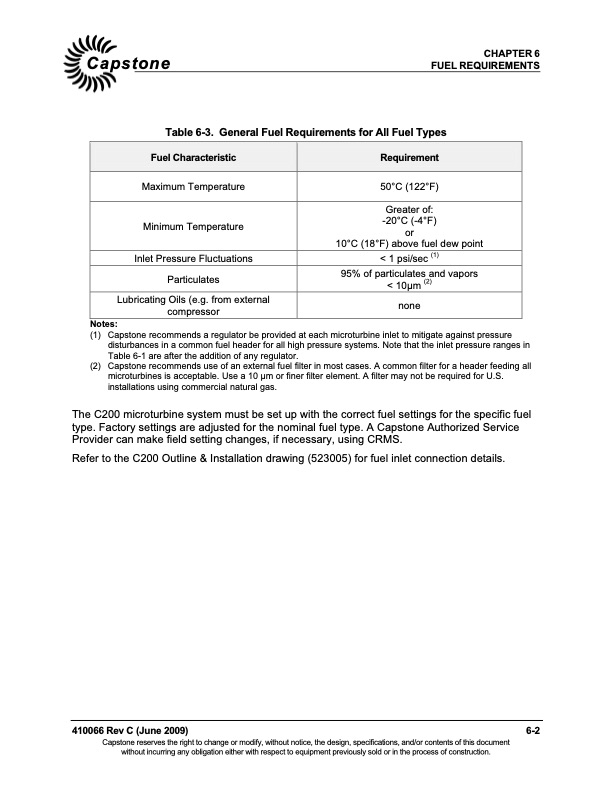

CHAPTER 6 Capstone FUEL REQUIREMENTS Table 6-3. General Fuel Requirements for All Fuel Types Fuel Characteristic Requirement Maximum Temperature Inlet Pressure Fluctuations Particulates Lubricating Oils (e.g. from external compressor Notes: 50°C (122°F) < 1 psi/sec (1) 95% of particulates and vapors < 10μm (2) none Minimum Temperature Greater of: -20°C (-4°F) or 10°C (18°F) above fuel dew point (1) Capstone recommends a regulator be provided at each microturbine inlet to mitigate against pressure disturbances in a common fuel header for all high pressure systems. Note that the inlet pressure ranges in Table 6-1 are after the addition of any regulator. (2) Capstone recommends use of an external fuel filter in most cases. A common filter for a header feeding all microturbines is acceptable. Use a 10 μm or finer filter element. A filter may not be required for U.S. installations using commercial natural gas. The C200 microturbine system must be set up with the correct fuel settings for the specific fuel type. Factory settings are adjusted for the nominal fuel type. A Capstone Authorized Service Provider can make field setting changes, if necessary, using CRMS. Refer to the C200 Outline & Installation drawing (523005) for fuel inlet connection details. 410066 Rev C (June 2009) 6-2 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE C200 MICROTURBINE TECHNICAL REFERENCE
PDF Search Title:
CAPSTONE C200 MICROTURBINE TECHNICAL REFERENCEOriginal File Name Searched:
410066C_C200_Tech_Ref.pdfDIY PDF Search: Google It | Yahoo | Bing
