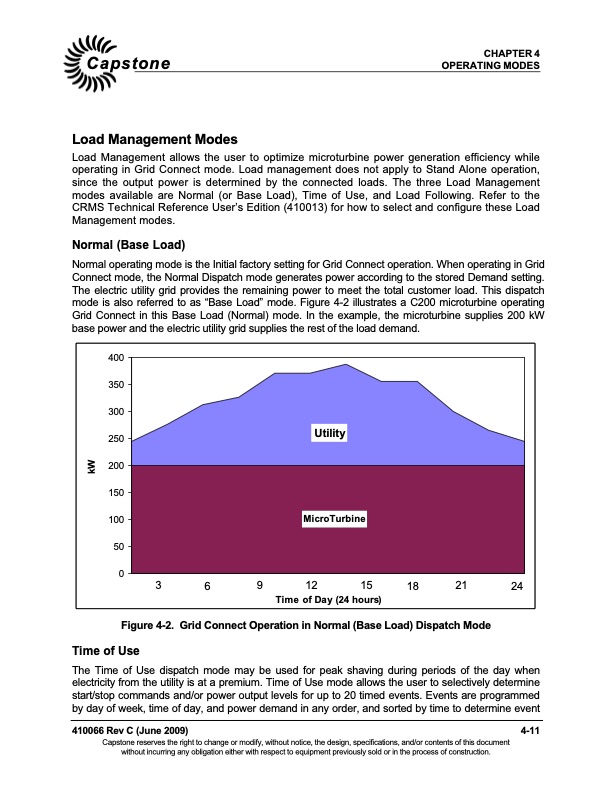

CHAPTER 4 Capstone OPERATING MODES Load Management Modes Load Management allows the user to optimize microturbine power generation efficiency while operating in Grid Connect mode. Load management does not apply to Stand Alone operation, since the output power is determined by the connected loads. The three Load Management modes available are Normal (or Base Load), Time of Use, and Load Following. Refer to the CRMS Technical Reference User’s Edition (410013) for how to select and configure these Load Management modes. Normal (Base Load) Normal operating mode is the Initial factory setting for Grid Connect operation. When operating in Grid Connect mode, the Normal Dispatch mode generates power according to the stored Demand setting. The electric utility grid provides the remaining power to meet the total customer load. This dispatch mode is also referred to as “Base Load” mode. Figure 4-2 illustrates a C200 microturbine operating Grid Connect in this Base Load (Normal) mode. In the example, the microturbine supplies 200 kW base power and the electric utility grid supplies the rest of the load demand. Figure 4-2. Grid Connect Operation in Normal (Base Load) Dispatch Mode Time of Use The Time of Use dispatch mode may be used for peak shaving during periods of the day when electricity from the utility is at a premium. Time of Use mode allows the user to selectively determine start/stop commands and/or power output levels for up to 20 timed events. Events are programmed by day of week, time of day, and power demand in any order, and sorted by time to determine event 410066 Rev C (June 2009) 4-11 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. 400 350 300 250 200 150 100 50 0 Utility MicroTurbine 3 6 9 12 15 18 21 24 Time of Day (24 hours) kWPDF Image | CAPSTONE C200 MICROTURBINE TECHNICAL REFERENCE
