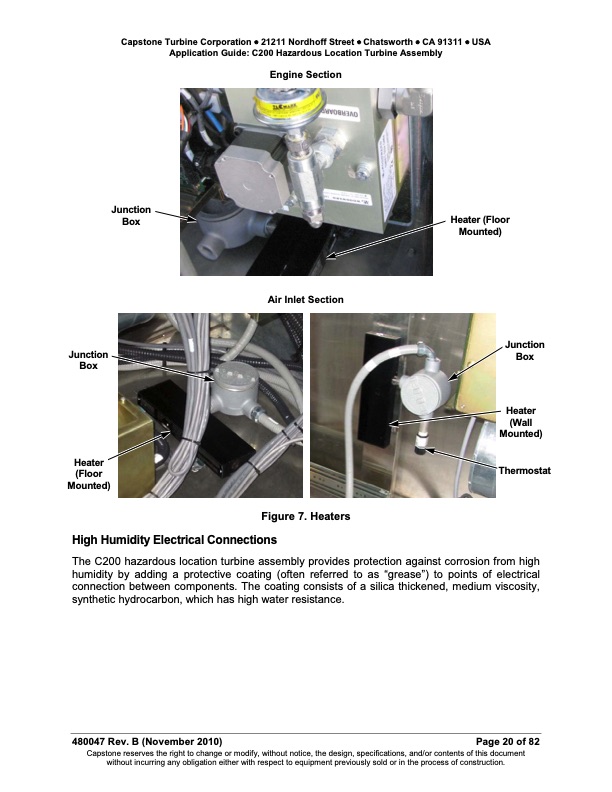

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: C200 Hazardous Location Turbine Assembly Engine Section Air Inlet Section Junction Box Junction Box Heater (Floor Mounted) Junction Box Heater (Wall Mounted) Thermostat Figure 7. Heaters High Humidity Electrical Connections The C200 hazardous location turbine assembly provides protection against corrosion from high humidity by adding a protective coating (often referred to as “grease”) to points of electrical connection between components. The coating consists of a silica thickened, medium viscosity, synthetic hydrocarbon, which has high water resistance. 480047 Rev. B (November 2010) Page 20 of 82 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Heater (Floor Mounted)PDF Image | Application Guide Capstone Model C200 Hazardous Location Turbine Assembly
