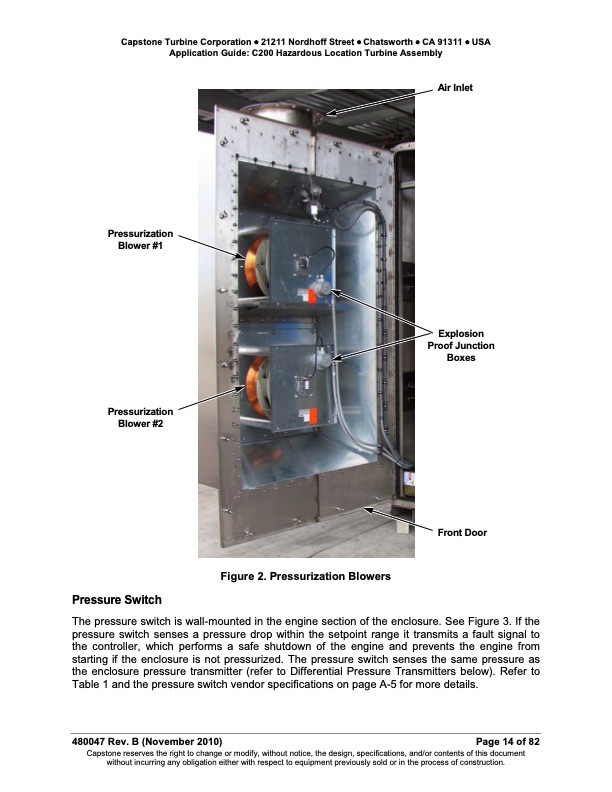

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: C200 Hazardous Location Turbine Assembly Pressurization Blower #1 Air Inlet Explosion Proof Junction Boxes Pressurization Blower #2 Pressure Switch Figure 2. Pressurization Blowers The pressure switch is wall-mounted in the engine section of the enclosure. See Figure 3. If the pressure switch senses a pressure drop within the setpoint range it transmits a fault signal to the controller, which performs a safe shutdown of the engine and prevents the engine from starting if the enclosure is not pressurized. The pressure switch senses the same pressure as the enclosure pressure transmitter (refer to Differential Pressure Transmitters below). Refer to Table 1 and the pressure switch vendor specifications on page A-5 for more details. 480047 Rev. B (November 2010) Page 14 of 82 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Front DoorPDF Image | Application Guide Capstone Model C200 Hazardous Location Turbine Assembly
