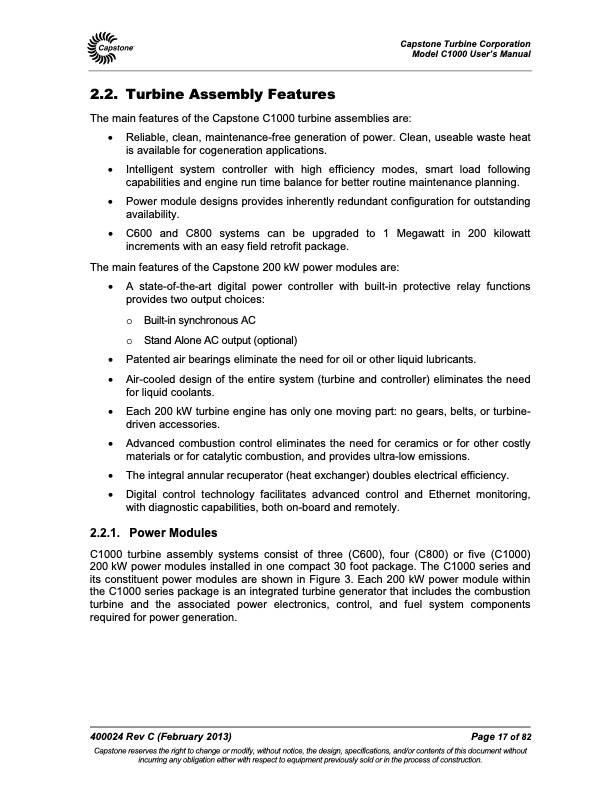

The main features of the Capstone C1000 turbine assemblies are: • Reliable, clean, maintenance-free generation of power. Clean, useable waste heat is available for cogeneration applications. • Intelligent system controller with high efficiency modes, smart load following capabilities and engine run time balance for better routine maintenance planning. • Power module designs provides inherently redundant configuration for outstanding availability. • C600 and C800 systems can be upgraded to 1 Megawatt in 200 kilowatt increments with an easy field retrofit package. The main features of the Capstone 200 kW power modules are: • A state-of-the-art digital power controller with built-in protective relay functions provides two output choices: o Built-insynchronousAC o StandAloneACoutput(optional) • Patented air bearings eliminate the need for oil or other liquid lubricants. • Air-cooled design of the entire system (turbine and controller) eliminates the need for liquid coolants. • Each 200 kW turbine engine has only one moving part: no gears, belts, or turbine- driven accessories. • Advanced combustion control eliminates the need for ceramics or for other costly materials or for catalytic combustion, and provides ultra-low emissions. • The integral annular recuperator (heat exchanger) doubles electrical efficiency. • Digital control technology facilitates advanced control and Ethernet monitoring, with diagnostic capabilities, both on-board and remotely. 2.2.1. Power Modules C1000 turbine assembly systems consist of three (C600), four (C800) or five (C1000) 200 kW power modules installed in one compact 30 foot package. The C1000 series and its constituent power modules are shown in Figure 3. Each 200 kW power module within the C1000 series package is an integrated turbine generator that includes the combustion turbine and the associated power electronics, control, and fuel system components required for power generation. 400024 Rev C (February 2013) Page 17 of 82 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Capstone Turbine Corporation Model C1000 User’s Manual 2.2. Turbine Assembly FeaturesPDF Image | Capstone Turbine Assembly C1000 Series User's Manual
