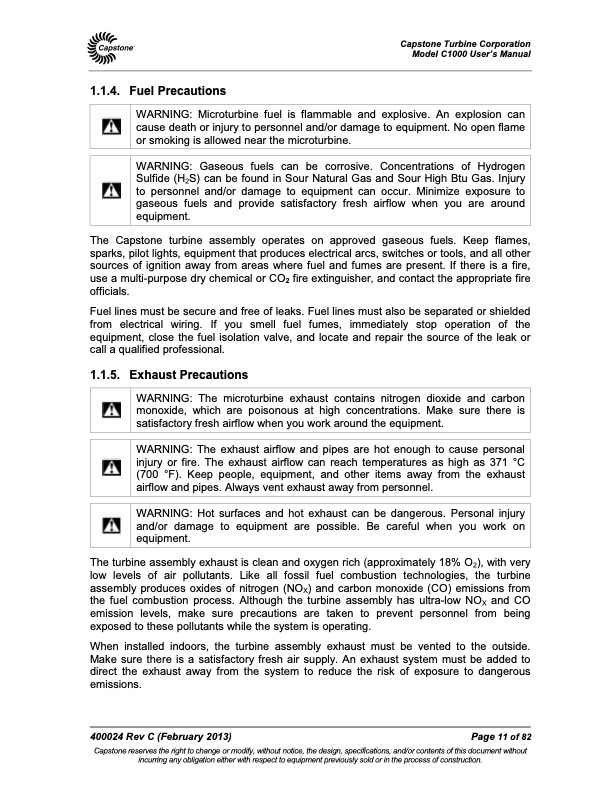

1.1.4. Fuel Precautions The Capstone turbine assembly operates on approved gaseous fuels. Keep flames, sparks, pilot lights, equipment that produces electrical arcs, switches or tools, and all other sources of ignition away from areas where fuel and fumes are present. If there is a fire, use a multi-purpose dry chemical or CO2 fire extinguisher, and contact the appropriate fire officials. Fuel lines must be secure and free of leaks. Fuel lines must also be separated or shielded from electrical wiring. If you smell fuel fumes, immediately stop operation of the equipment, close the fuel isolation valve, and locate and repair the source of the leak or call a qualified professional. 1.1.5. Exhaust Precautions The turbine assembly exhaust is clean and oxygen rich (approximately 18% O2), with very low levels of air pollutants. Like all fossil fuel combustion technologies, the turbine assembly produces oxides of nitrogen (NOX) and carbon monoxide (CO) emissions from the fuel combustion process. Although the turbine assembly has ultra-low NOX and CO emission levels, make sure precautions are taken to prevent personnel from being exposed to these pollutants while the system is operating. When installed indoors, the turbine assembly exhaust must be vented to the outside. Make sure there is a satisfactory fresh air supply. An exhaust system must be added to direct the exhaust away from the system to reduce the risk of exposure to dangerous emissions. 400024 Rev C (February 2013) Page 11 of 82 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Capstone Turbine Corporation Model C1000 User’s Manual WARNING: Microturbine fuel is flammable and explosive. An explosion can cause death or injury to personnel and/or damage to equipment. No open flame or smoking is allowed near the microturbine. WARNING: Gaseous fuels can be corrosive. Concentrations of Hydrogen Sulfide (H2S) can be found in Sour Natural Gas and Sour High Btu Gas. Injury to personnel and/or damage to equipment can occur. Minimize exposure to gaseous fuels and provide satisfactory fresh airflow when you are around equipment. WARNING: The microturbine exhaust contains nitrogen dioxide and carbon monoxide, which are poisonous at high concentrations. Make sure there is satisfactory fresh airflow when you work around the equipment. WARNING: The exhaust airflow and pipes are hot enough to cause personal injury or fire. The exhaust airflow can reach temperatures as high as 371 °C (700 °F). Keep people, equipment, and other items away from the exhaust airflow and pipes. Always vent exhaust away from personnel. WARNING: Hot surfaces and hot exhaust can be dangerous. Personal injury and/or damage to equipment are possible. Be careful when you work on equipment.PDF Image | Capstone Turbine Assembly C1000 Series User's Manual
