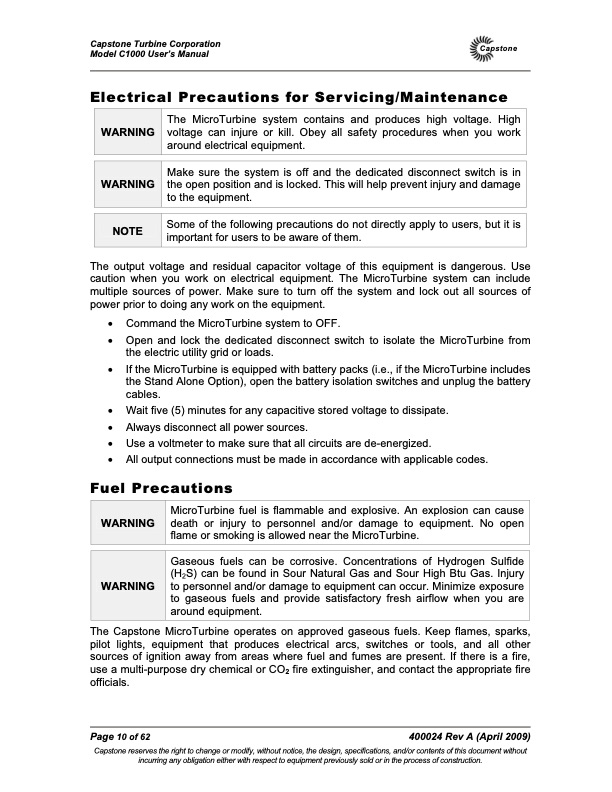

Capstone Turbine Corporation Model C1000 User’s Manual Capstone Electrical Precautions for Servicing/Maintenance WARNING The MicroTurbine system contains and produces high voltage. High voltage can injure or kill. Obey all safety procedures when you work around electrical equipment. WARNING Make sure the system is off and the dedicated disconnect switch is in the open position and is locked. This will help prevent injury and damage to the equipment. NOTE Some of the following precautions do not directly apply to users, but it is important for users to be aware of them. The output voltage and residual capacitor voltage of this equipment is dangerous. Use caution when you work on electrical equipment. The MicroTurbine system can include multiple sources of power. Make sure to turn off the system and lock out all sources of power prior to doing any work on the equipment. Command the MicroTurbine system to OFF. Open and lock the dedicated disconnect switch to isolate the MicroTurbine from the electric utility grid or loads. If the MicroTurbine is equipped with battery packs (i.e., if the MicroTurbine includes the Stand Alone Option), open the battery isolation switches and unplug the battery cables. Wait five (5) minutes for any capacitive stored voltage to dissipate. Always disconnect all power sources. Use a voltmeter to make sure that all circuits are de-energized. All output connections must be made in accordance with applicable codes. Fuel Precautions WARNING MicroTurbine fuel is flammable and explosive. An explosion can cause death or injury to personnel and/or damage to equipment. No open flame or smoking is allowed near the MicroTurbine. WARNING Gaseous fuels can be corrosive. Concentrations of Hydrogen Sulfide (H2S) can be found in Sour Natural Gas and Sour High Btu Gas. Injury to personnel and/or damage to equipment can occur. Minimize exposure to gaseous fuels and provide satisfactory fresh airflow when you are around equipment. The Capstone MicroTurbine operates on approved gaseous fuels. Keep flames, sparks, pilot lights, equipment that produces electrical arcs, switches or tools, and all other sources of ignition away from areas where fuel and fumes are present. If there is a fire, use a multi-purpose dry chemical or CO2 fire extinguisher, and contact the appropriate fire officials. Page 10 of 62 400024 Rev A (April 2009) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine C1000 Series User's Manual
