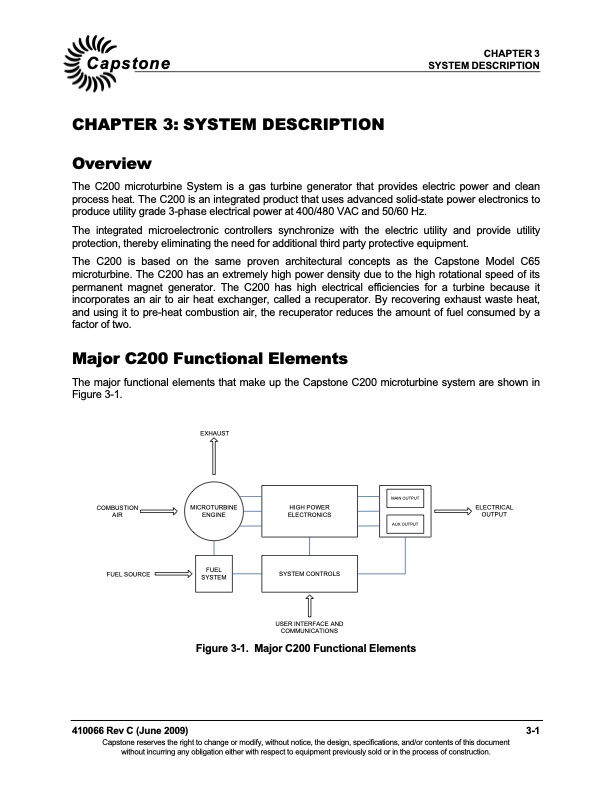

CHAPTER 3 Capstone SYSTEM DESCRIPTION CHAPTER 3: SYSTEM DESCRIPTION Overview The C200 microturbine System is a gas turbine generator that provides electric power and clean process heat. The C200 is an integrated product that uses advanced solid-state power electronics to produce utility grade 3-phase electrical power at 400/480 VAC and 50/60 Hz. The integrated microelectronic controllers synchronize with the electric utility and provide utility protection, thereby eliminating the need for additional third party protective equipment. The C200 is based on the same proven architectural concepts as the Capstone Model C65 microturbine. The C200 has an extremely high power density due to the high rotational speed of its permanent magnet generator. The C200 has high electrical efficiencies for a turbine because it incorporates an air to air heat exchanger, called a recuperator. By recovering exhaust waste heat, and using it to pre-heat combustion air, the recuperator reduces the amount of fuel consumed by a factor of two. Major C200 Functional Elements The major functional elements that make up the Capstone C200 microturbine system are shown in Figure 3-1. COMBUSTION AIR FUEL SOURCE EXHAUST MICROTURBINE ENGINE ELECTRICAL OUTPUT HIGH POWER ELECTRONICS MAIN OUTPUT AUX OUTPUT FUEL SYSTEM SYSTEM CONTROLS USER INTERFACE AND COMMUNICATIONS Figure 3-1. Major C200 Functional Elements 410066 Rev C (June 2009) 3-1 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE C200 MICROTURBINE TECHNICAL REFERENCE
