Text from PDF Page: 013

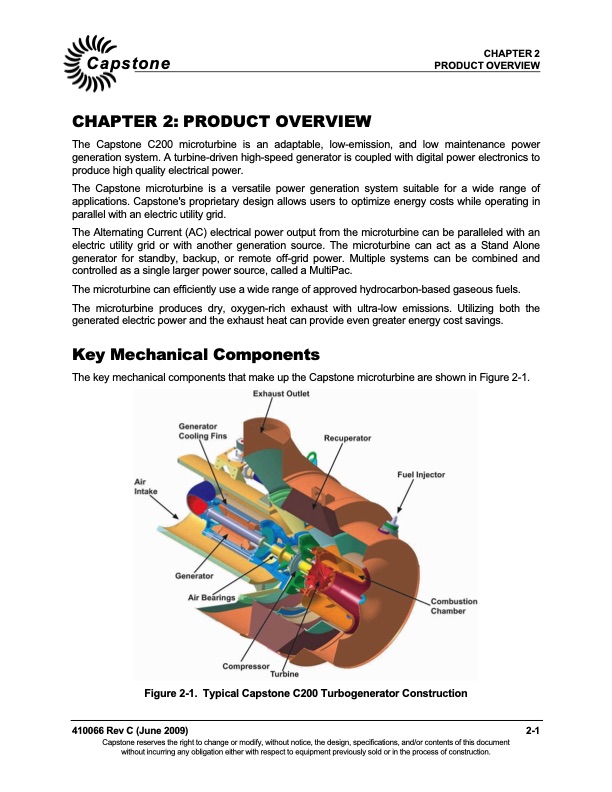

CHAPTER 2 Capstone PRODUCT OVERVIEW CHAPTER 2: PRODUCT OVERVIEW The Capstone C200 microturbine is an adaptable, low-emission, and low maintenance power generation system. A turbine-driven high-speed generator is coupled with digital power electronics to produce high quality electrical power. The Capstone microturbine is a versatile power generation system suitable for a wide range of applications. Capstone's proprietary design allows users to optimize energy costs while operating in parallel with an electric utility grid. The Alternating Current (AC) electrical power output from the microturbine can be paralleled with an electric utility grid or with another generation source. The microturbine can act as a Stand Alone generator for standby, backup, or remote off-grid power. Multiple systems can be combined and controlled as a single larger power source, called a MultiPac. The microturbine can efficiently use a wide range of approved hydrocarbon-based gaseous fuels. The microturbine produces dry, oxygen-rich exhaust with ultra-low emissions. Utilizing both the generated electric power and the exhaust heat can provide even greater energy cost savings. Key Mechanical Components The key mechanical components that make up the Capstone microturbine are shown in Figure 2-1. Figure 2-1. Typical Capstone C200 Turbogenerator Construction 410066 Rev C (June 2009) 2-1 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE C200 MICROTURBINE TECHNICAL REFERENCE
