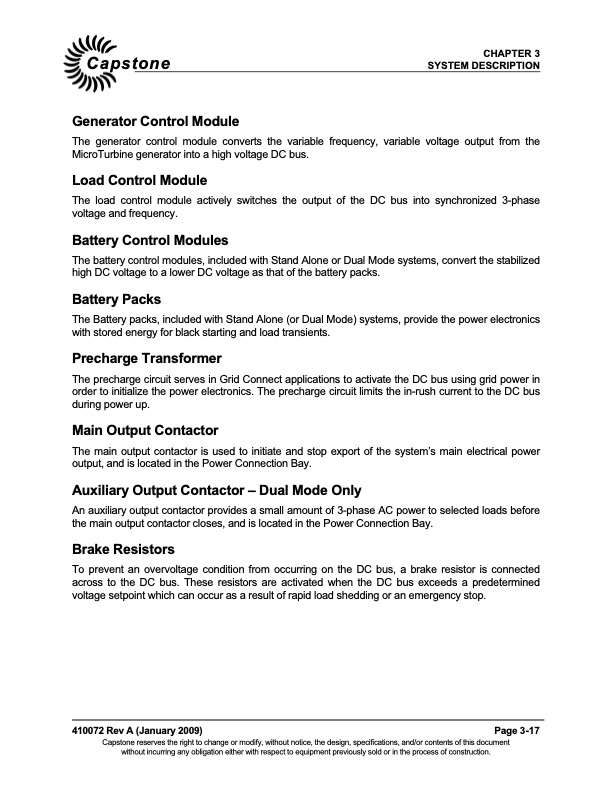

CHAPTER 3 Capstone SYSTEM DESCRIPTION Generator Control Module The generator control module converts the variable frequency, variable voltage output from the MicroTurbine generator into a high voltage DC bus. Load Control Module The load control module actively switches the output of the DC bus into synchronized 3-phase voltage and frequency. Battery Control Modules The battery control modules, included with Stand Alone or Dual Mode systems, convert the stabilized high DC voltage to a lower DC voltage as that of the battery packs. Battery Packs The Battery packs, included with Stand Alone (or Dual Mode) systems, provide the power electronics with stored energy for black starting and load transients. Precharge Transformer The precharge circuit serves in Grid Connect applications to activate the DC bus using grid power in order to initialize the power electronics. The precharge circuit limits the in-rush current to the DC bus during power up. Main Output Contactor The main output contactor is used to initiate and stop export of the system’s main electrical power output, and is located in the Power Connection Bay. Auxiliary Output Contactor – Dual Mode Only An auxiliary output contactor provides a small amount of 3-phase AC power to selected loads before the main output contactor closes, and is located in the Power Connection Bay. Brake Resistors To prevent an overvoltage condition from occurring on the DC bus, a brake resistor is connected across to the DC bus. These resistors are activated when the DC bus exceeds a predetermined voltage setpoint which can occur as a result of rapid load shedding or an emergency stop. 410072 Rev A (January 2009) Page 3-17 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE C1000 MICROTURBINE SYSTEMS TECHNICAL REFERENCE
