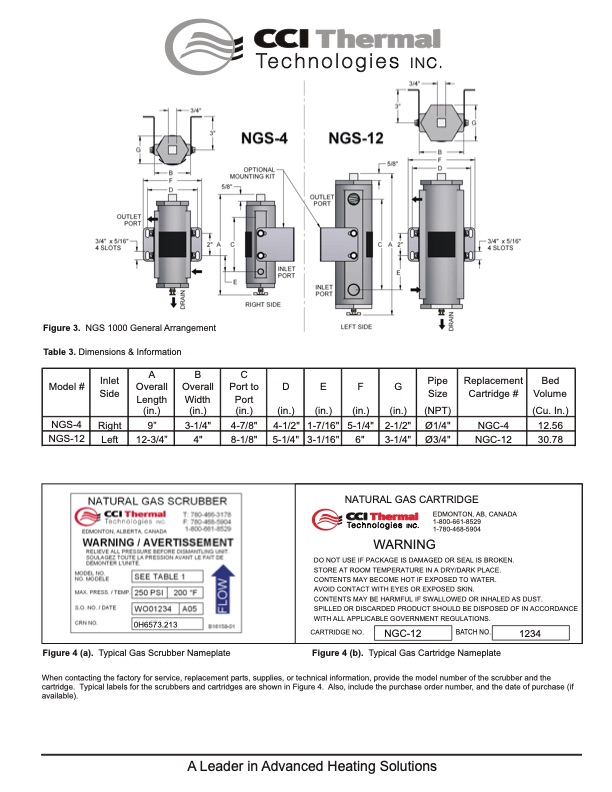

Figure 3. NGS 1000 General Arrangement Table 3. Dimensions & Information Figure 4 (a). Typical Gas Scrubber Nameplate Figure 4 (b). Typical Gas Cartridge Nameplate When contacting the factory for service, replacement parts, supplies, or technical information, provide the model number of the scrubber and the cartridge. Typical labels for the scrubbers and cartridges are shown in Figure 4. Also, include the purchase order number, and the date of purchase (if available). Model # Inlet Side A Overall Length (in.) B Overall Width (in.) C Port to Port (in.) D (in.) E (in.) F (in.) G (in.) Pipe Size (NPT) Replacement Cartridge # Bed Volume (Cu. In.) NGS-4 Right 9” 3-1/4" 4-7/8" 4-1/2" 1-7/16" 5-1/4" 2-1/2" Ø1/4" NGC-4 12.56 NGS-12 Left 12-3/4” 4" 8-1/8" 5-1/4" 3-1/16" 6" 3-1/4" Ø3/4" NGC-12 30.78 0H6573.213 NATURAL GAS CARTRIDGE EDMONTON, AB, CANADA 1-800-661-8529 1-780-468-5904 WARNING DO NOT USE IF PACKAGE IS DAMAGED OR SEAL IS BROKEN. STORE AT ROOM TEMPERATURE IN A DRY/DARK PLACE. CONTENTS MAY BECOME HOT IF EXPOSED TO WATER. AVOID CONTACT WITH EYES OR EXPOSED SKIN. CONTENTS MAY BE HARMFUL IF SWALLOWED OR INHALED AS DUST. SPILLED OR DISCARDED PRODUCT SHOULD BE DISPOSED OF IN ACCORDANCE WITH ALL APPLICABLE GOVERNMENT REGULATIONS. CARTRIDGE NO. NGC-12 BATCH NO. 1234 A Leader in Advanced Heating SolutionsPDF Image | NGS 1000 Scrubber
