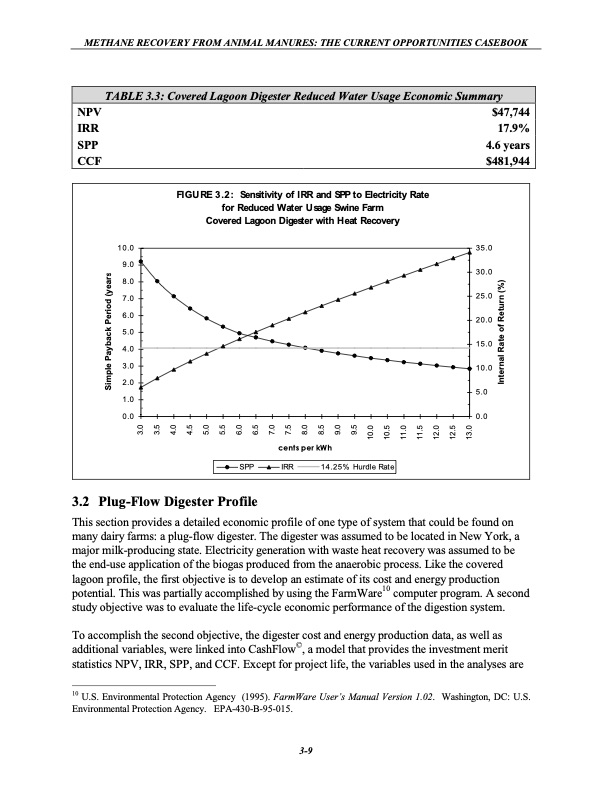

METHANE RECOVERY FROM ANIMAL MANURES: THE CURRENT OPPORTUNITIES CASEBOOK NPV IRR SPP CCF $47,744 17.9% 4.6 years $481,944 TABLE 3.3: Covered Lagoon Digester Reduced Water Usage Economic Summary 10.0 9.0 8.0 7.0 6.0 5.0 4.0 3.0 2.0 1.0 35.0 30.0 25.0 20.0 15.0 10.0 5.0 FIGURE3.2: SensitivityofIRRandSPPtoElectricityRate for Reduced Water Usage Swine Farm Covered Lagoon Digester with Heat Recovery 0.0 0.0 SPP cents per kWh IRR 14.25% Hurdle Rate 3.2 Plug-Flow Digester Profile This section provides a detailed economic profile of one type of system that could be found on many dairy farms: a plug-flow digester. The digester was assumed to be located in New York, a major milk-producing state. Electricity generation with waste heat recovery was assumed to be the end-use application of the biogas produced from the anaerobic process. Like the covered lagoon profile, the first objective is to develop an estimate of its cost and energy production potential. This was partially accomplished by using the FarmWare10 computer program. A second study objective was to evaluate the life-cycle economic performance of the digestion system. To accomplish the second objective, the digester cost and energy production data, as well as additional variables, were linked into CashFlow©, a model that provides the investment merit statistics NPV, IRR, SPP, and CCF. Except for project life, the variables used in the analyses are 10 U.S. Environmental Protection Agency (1995). FarmWare User’s Manual Version 1.02. Washington, DC: U.S. Environmental Protection Agency. EPA-430-B-95-015. 3-9 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0 9.5 10.0 10.5 11.0 11.5 12.0 12.5 13.0 Simple Payback Period (years Internal Rate of Return (%)PDF Image | Methane Recovery from Animal Manures The Current Opportunities Casebook
