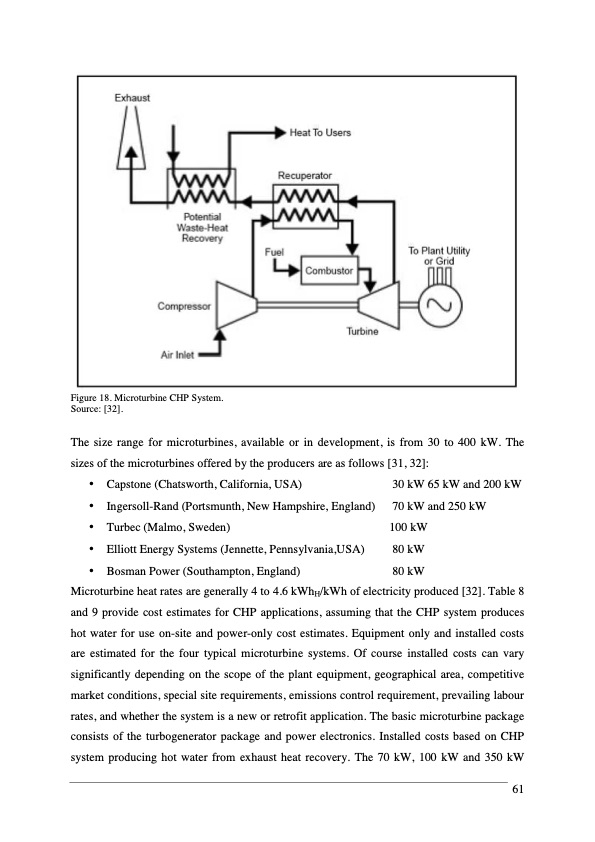

Figure 18. Microturbine CHP System. Source: [32]. The size range for microturbines, available or in development, is from 30 to 400 kW. The sizes of the microturbines offered by the producers are as follows [31, 32]: • Capstone (Chatsworth, California, USA) • Ingersoll-Rand (Portsmunth, New Hampshire, England) • Turbec (Malmo, Sweden) • Elliott Energy Systems (Jennette, Pennsylvania,USA) • Bosman Power (Southampton, England) 30 kW 65 kW and 200 kW 70 kW and 250 kW 100 kW 80 kW 80 kW Microturbine heat rates are generally 4 to 4.6 kWhH/kWh of electricity produced [32]. Table 8 and 9 provide cost estimates for CHP applications, assuming that the CHP system produces hot water for use on-site and power-only cost estimates. Equipment only and installed costs are estimated for the four typical microturbine systems. Of course installed costs can vary significantly depending on the scope of the plant equipment, geographical area, competitive market conditions, special site requirements, emissions control requirement, prevailing labour rates, and whether the system is a new or retrofit application. The basic microturbine package consists of the turbogenerator package and power electronics. Installed costs based on CHP system producing hot water from exhaust heat recovery. The 70 kW, 100 kW and 350 kW 61PDF Image | Landfill Gas Energy Technologies
