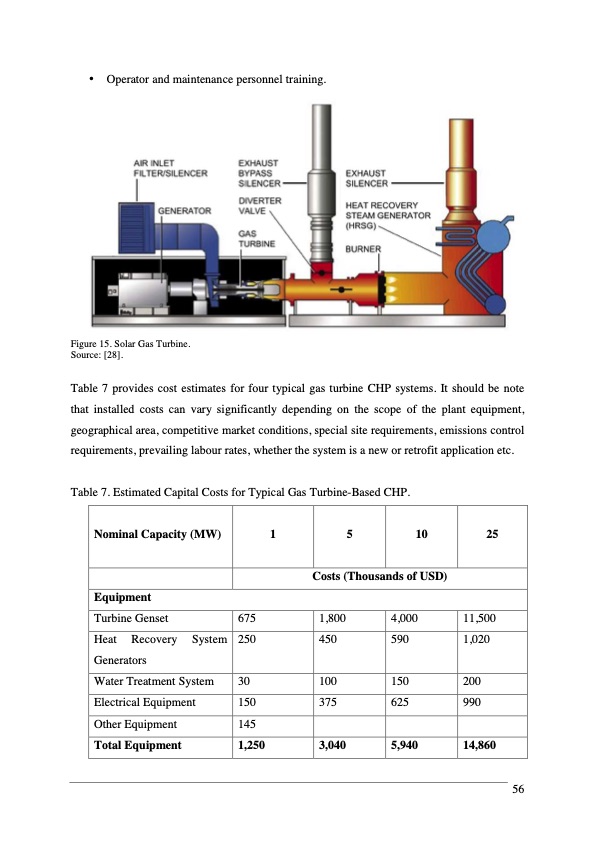

• Operator and maintenance personnel training. Figure 15. Solar Gas Turbine. Source: [28]. Table 7 provides cost estimates for four typical gas turbine CHP systems. It should be note that installed costs can vary significantly depending on the scope of the plant equipment, geographical area, competitive market conditions, special site requirements, emissions control requirements, prevailing labour rates, whether the system is a new or retrofit application etc. Table 7. Estimated Capital Costs for Typical Gas Turbine-Based CHP. Nominal Capacity (MW) 1 5 10 25 Equipment Turbine Genset 675 Heat Recovery System 250 Generators Water Treatment System 30 Electrical Equipment 150 Other Equipment 145 Total Equipment 1,250 Costs (Thousands of USD) 1,800 4,000 450 590 100 150 375 625 3,040 5,940 11,500 1,020 200 990 14,860 56PDF Image | Landfill Gas Energy Technologies
