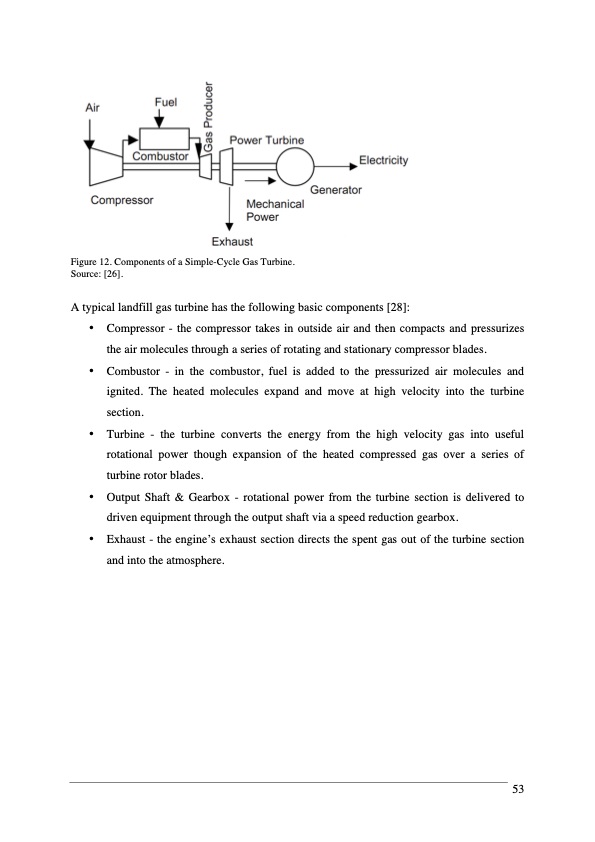

Figure 12. Components of a Simple-Cycle Gas Turbine. Source: [26]. A typical landfill gas turbine has the following basic components [28]: • Compressor - the compressor takes in outside air and then compacts and pressurizes the air molecules through a series of rotating and stationary compressor blades. • Combustor - in the combustor, fuel is added to the pressurized air molecules and ignited. The heated molecules expand and move at high velocity into the turbine section. • Turbine - the turbine converts the energy from the high velocity gas into useful rotational power though expansion of the heated compressed gas over a series of turbine rotor blades. • Output Shaft & Gearbox - rotational power from the turbine section is delivered to driven equipment through the output shaft via a speed reduction gearbox. • Exhaust - the engine’s exhaust section directs the spent gas out of the turbine section and into the atmosphere. 53PDF Image | Landfill Gas Energy Technologies
