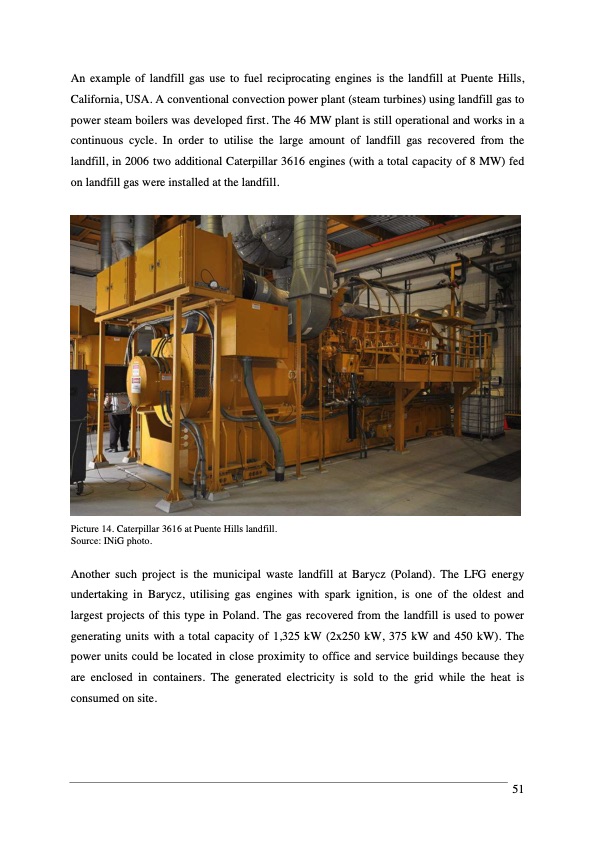

An example of landfill gas use to fuel reciprocating engines is the landfill at Puente Hills, California, USA. A conventional convection power plant (steam turbines) using landfill gas to power steam boilers was developed first. The 46 MW plant is still operational and works in a continuous cycle. In order to utilise the large amount of landfill gas recovered from the landfill, in 2006 two additional Caterpillar 3616 engines (with a total capacity of 8 MW) fed on landfill gas were installed at the landfill. Picture 14. Caterpillar 3616 at Puente Hills landfill. Source: INiG photo. Another such project is the municipal waste landfill at Barycz (Poland). The LFG energy undertaking in Barycz, utilising gas engines with spark ignition, is one of the oldest and largest projects of this type in Poland. The gas recovered from the landfill is used to power generating units with a total capacity of 1,325 kW (2x250 kW, 375 kW and 450 kW). The power units could be located in close proximity to office and service buildings because they are enclosed in containers. The generated electricity is sold to the grid while the heat is consumed on site. 51PDF Image | Landfill Gas Energy Technologies
