PDF Publication Title:
Text from PDF Page: 047

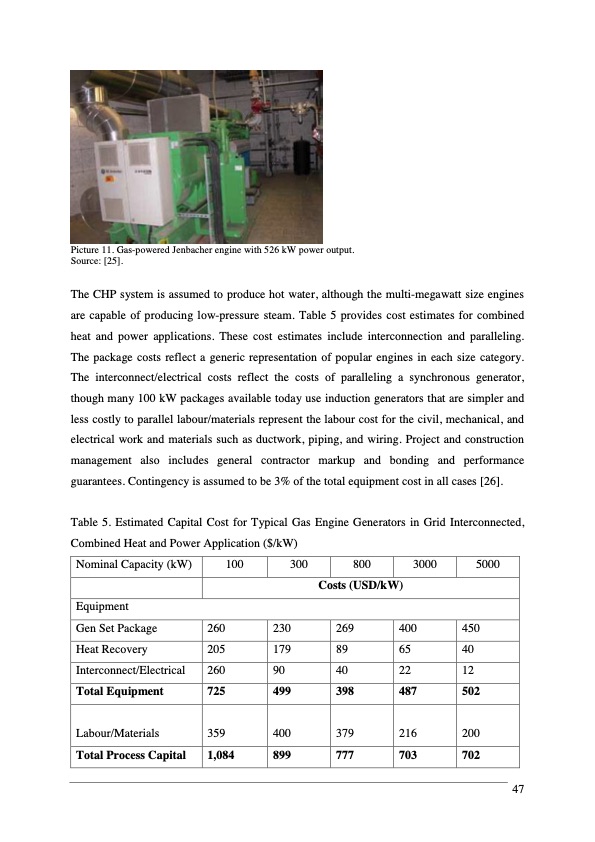

Picture 11. Gas-powered Jenbacher engine with 526 kW power output. Source: [25]. The CHP system is assumed to produce hot water, although the multi-megawatt size engines are capable of producing low-pressure steam. Table 5 provides cost estimates for combined heat and power applications. These cost estimates include interconnection and paralleling. The package costs reflect a generic representation of popular engines in each size category. The interconnect/electrical costs reflect the costs of paralleling a synchronous generator, though many 100 kW packages available today use induction generators that are simpler and less costly to parallel labour/materials represent the labour cost for the civil, mechanical, and electrical work and materials such as ductwork, piping, and wiring. Project and construction management also includes general contractor markup and bonding and performance guarantees. Contingency is assumed to be 3% of the total equipment cost in all cases [26]. Table 5. Estimated Capital Cost for Typical Gas Engine Generators in Grid Interconnected, Combined Heat and Power Application ($/kW) Nominal Capacity (kW) Equipment Gen Set Package Heat Recovery Interconnect/Electrical Total Equipment Labour/Materials Total Process Capital 100 260 205 260 725 359 1,084 300 800 3000 Costs (USD/kW) 5000 450 40 12 502 200 702 230 269 179 89 90 40 499 398 400 379 899 777 400 65 22 487 216 703 47PDF Image | Landfill Gas Energy Technologies
