PDF Publication Title:
Text from PDF Page: 025

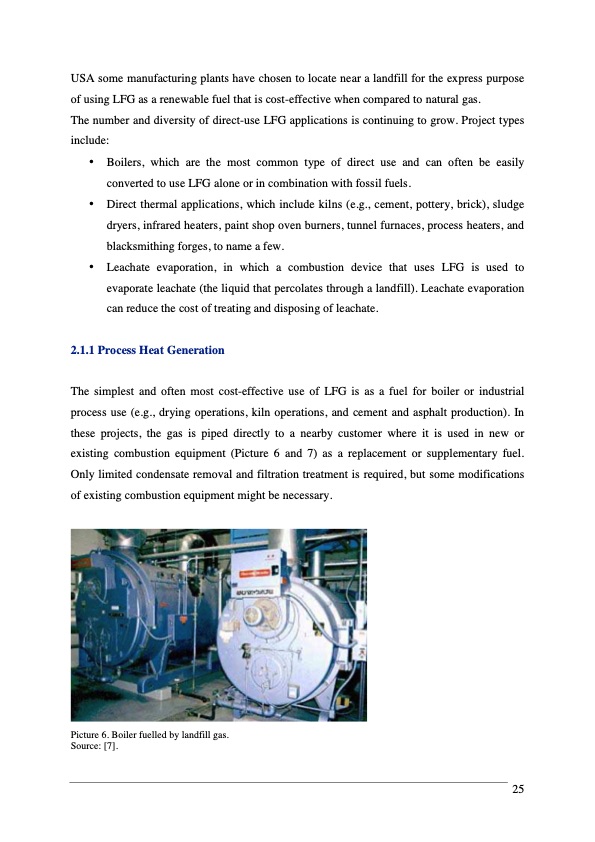

USA some manufacturing plants have chosen to locate near a landfill for the express purpose of using LFG as a renewable fuel that is cost-effective when compared to natural gas. The number and diversity of direct-use LFG applications is continuing to grow. Project types include: • Boilers, which are the most common type of direct use and can often be easily converted to use LFG alone or in combination with fossil fuels. • Direct thermal applications, which include kilns (e.g., cement, pottery, brick), sludge dryers, infrared heaters, paint shop oven burners, tunnel furnaces, process heaters, and blacksmithing forges, to name a few. • Leachate evaporation, in which a combustion device that uses LFG is used to evaporate leachate (the liquid that percolates through a landfill). Leachate evaporation can reduce the cost of treating and disposing of leachate. 2.1.1 Process Heat Generation The simplest and often most cost-effective use of LFG is as a fuel for boiler or industrial process use (e.g., drying operations, kiln operations, and cement and asphalt production). In these projects, the gas is piped directly to a nearby customer where it is used in new or existing combustion equipment (Picture 6 and 7) as a replacement or supplementary fuel. Only limited condensate removal and filtration treatment is required, but some modifications of existing combustion equipment might be necessary. Picture 6. Boiler fuelled by landfill gas. Source: [7]. 25PDF Image | Landfill Gas Energy Technologies
PDF Search Title:
Landfill Gas Energy TechnologiesOriginal File Name Searched:
1022_LFG-Handbook.pdfDIY PDF Search: Google It | Yahoo | Bing
