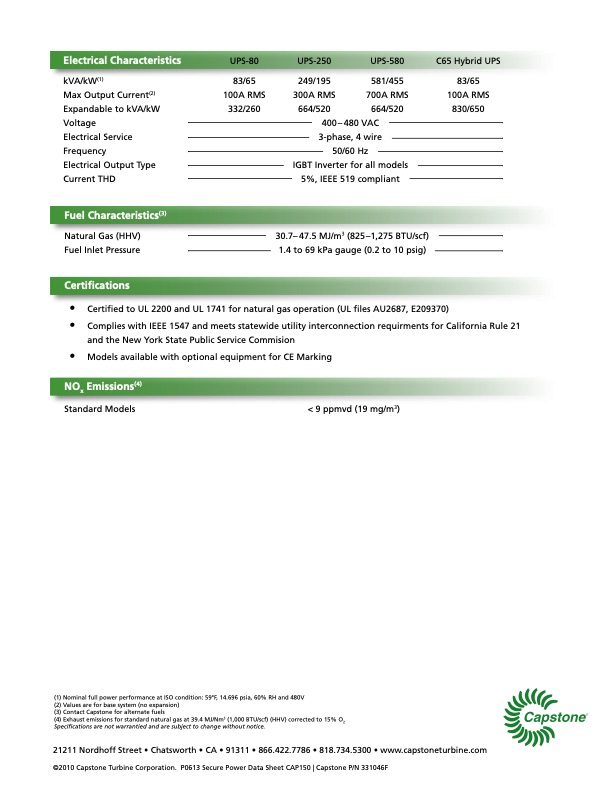

Electrical Characteristics UPS-80 UPS-250 UPS-580 C65 Hybrid UPS kVA/kW(1) Max Output Current(2) Expandable to kVA/kW Voltage Electrical Service Frequency Electrical Output Type Current THD NaturalGas(HHV) Fuel Inlet Pressure 83/65 100A RMS 332/260 249/195 300A RMS 664/520 581/455 700A RMS 664/520 83/65 100A RMS 830/650 400 – 480 VAC 3-phase, 4 wire 50/60 Hz IGBT Inverter for all models 5%, IEEE 519 compliant 30.7–47.5MJ/m (825–1,275BTU/scf) 1.4 to 69 kPa gauge (0.2 to 10 psig) Fuel Characteristics(3) 3 Certifications • Certified to UL 2200 and UL 1741 for natural gas operation (UL files AU2687, E209370) • Complies with IEEE 1547 and meets statewide utility interconnection requirments for California Rule 21 and the New York State Public Service Commision • Models available with optional equipment for CE Marking Standard Models < 9 ppmvd (19 mg/m3) NOx Emissions(4) (1) Nominal full power performance at ISO condition: 59°F, 14.696 psia, 60% RH and 480V (2) Values are for base system (no expansion) (3) Contact Capstone for alternate fuels (4) Exhaust emissions for standard natural gas at 39.4 MJ/Nm3 (1,000 BTU/scf) (HHV) corrected to 15% O2 Specifications are not warrantied and are subject to change without notice. 21211 Nordhoff Street • Chatsworth • CA • 91311 • 866.422.7786 • 818.734.5300 • www.capstoneturbine.com ©2010 Capstone Turbine Corporation. P0613 Secure Power Data Sheet CAP150 | Capstone P/N 331046FPDF Image | Secure Power Uninterruptible Power Source
