PDF Publication Title:
Text from PDF Page: 003

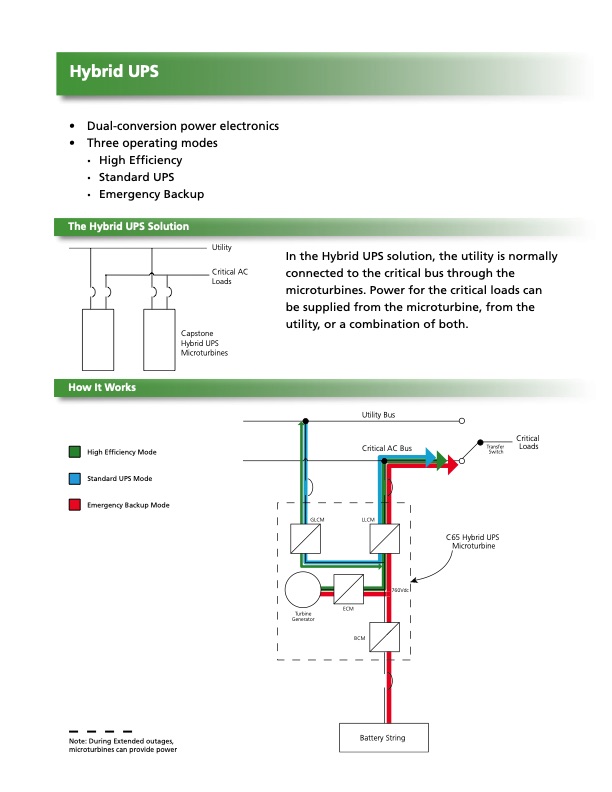

Hybrid UPS • Dual-conversion power electronics • Three operating modes • High Efficiency • Standard UPS • Emergency Backup The Hybrid UPS Solution Utility Critical AC Loads Capstone Hybrid UPS Microturbines In the Hybrid UPS solution, the utility is normally connected to the critical bus through the microturbines. Power for the critical loads can be supplied from the microturbine, from the utility, or a combination of both. How It Works High Efficiency Mode Standard UPS Mode Emergency Backup Mode Utility Bus Critical AC Bus Transfer Switch C65 Hybrid UPS Microturbine Critical Loads GLCM LLCM Turbine Generator ECM BCM 760Vdc Note: During Extended outages, microturbines can provide power Battery StringPDF Image | Secure Power Uninterruptible Power Source
PDF Search Title:
Secure Power Uninterruptible Power SourceOriginal File Name Searched:
331046F_Secure_Power.pdfDIY PDF Search: Google It | Yahoo | Bing
