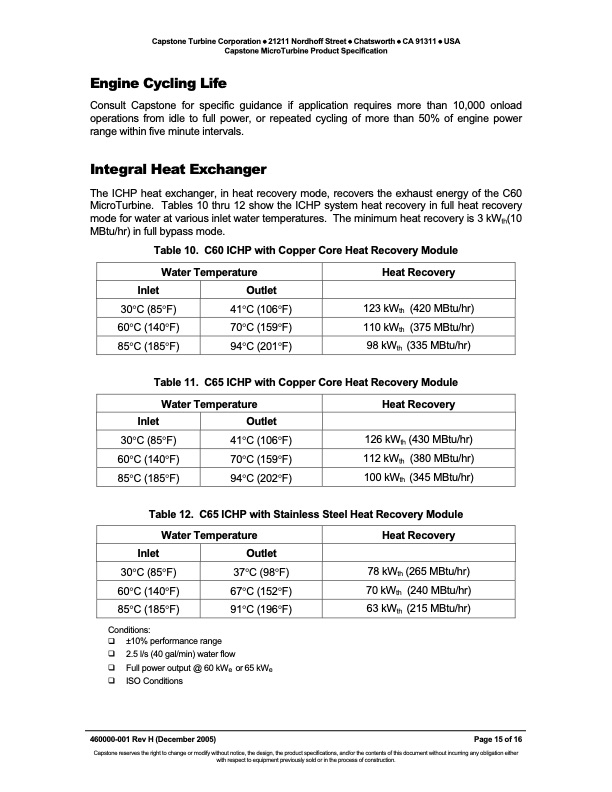

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone MicroTurbine Product Specification Engine Cycling Life Consult Capstone for specific guidance if application requires more than 10,000 onload operations from idle to full power, or repeated cycling of more than 50% of engine power range within five minute intervals. Integral Heat Exchanger The ICHP heat exchanger, in heat recovery mode, recovers the exhaust energy of the C60 MicroTurbine. Tables 10 thru 12 show the ICHP system heat recovery in full heat recovery mode for water at various inlet water temperatures. The minimum heat recovery is 3 kWth(10 MBtu/hr) in full bypass mode. Table 10. C60 ICHP with Copper Core Heat Recovery Module Inlet 30°C (85°F) 60°C (140°F) 85°C(185°F) 41°C (106°F) 70°C (159°F) 94°C(201°F) Water Temperature Outlet Heat Recovery 123 kWth (420 MBtu/hr) 110 kWth (375 MBtu/hr) 98kWth (335MBtu/hr) Inlet 30°C (85°F) 60°C (140°F) 85°C(185°F) 41°C (106°F) 70°C (159°F) 94°C(202°F) Table 11. C65 ICHP with Copper Core Heat Recovery Module Water Temperature Outlet Heat Recovery 126 kWth (430 MBtu/hr) 112 kWth (380 MBtu/hr) 100kWth (345MBtu/hr) Table 12. C65 ICHP with Stainless Steel Heat Recovery Module Water Temperature Outlet Heat Recovery 78 kWth (265 MBtu/hr) 70 kWth (240 MBtu/hr) 63kWth (215MBtu/hr) Inlet 30°C (85°F) 60°C (140°F) 85°C(185°F) 37°C (98°F) 67°C (152°F) 91°C(196°F) Conditions: ±10%performancerange 2.5l/s(40gal/min)waterflow Full power output @ 60 kWe or 65 kWe ISOConditions 460000-001 Rev H (December 2005) Page 15 of 16 Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Product Specification Technical Specifications and Descriptions
