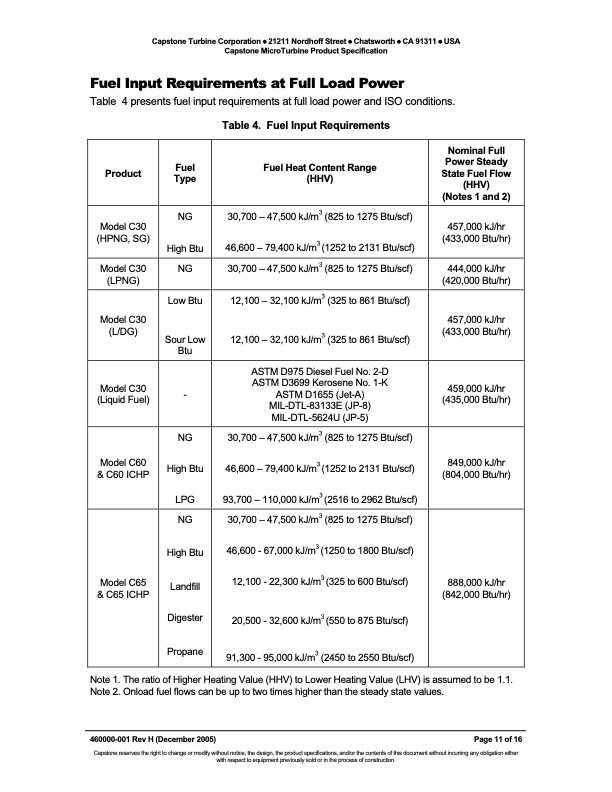

Text from PDF Page: 011
Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone MicroTurbine Product Specification Fuel Input Requirements at Full Load Power Table 4 presents fuel input requirements at full load power and ISO conditions. Table 4. Fuel Input Requirements Product Fuel Type Fuel Heat Content Range (HHV) Nominal Full Power Steady State Fuel Flow (HHV) (Notes 1 and 2) Model C30 (HPNG, SG) NG High Btu 30,700 – 47,500 kJ/m3 (825 to 1275 Btu/scf) 46,600 – 79,400 kJ/m3 (1252 to 2131 Btu/scf) 457,000 kJ/hr (433,000 Btu/hr) Model C30 NG 30,700 – 47,500 kJ/m3 (825 to 1275 Btu/scf) 444,000 kJ/hr (LPNG) (420,000 Btu/hr) Model C30 (L/DG) Low Btu Sour Low Btu 12,100 – 32,100 kJ/m3 (325 to 861 Btu/scf) 12,100 – 32,100 kJ/m3 (325 to 861 Btu/scf) 457,000 kJ/hr (433,000 Btu/hr) Model C30 (Liquid Fuel) - ASTM D975 Diesel Fuel No. 2-D ASTM D3699 Kerosene No. 1-K ASTM D1655 (Jet-A) MIL-DTL-83133E (JP-8) MIL-DTL-5624U (JP-5) 459,000 kJ/hr (435,000 Btu/hr) Model C60 & C60 ICHP NG High Btu LPG 30,700 – 47,500 kJ/m3 (825 to 1275 Btu/scf) 46,600 – 79,400 kJ/m3 (1252 to 2131 Btu/scf) 93,700 – 110,000 kJ/m3 (2516 to 2962 Btu/scf) 849,000 kJ/hr (804,000 Btu/hr) Model C65 & C65 ICHP NG High Btu Landfill Digester Propane 30,700 – 47,500 kJ/m3 (825 to 1275 Btu/scf) 46,600 - 67,000 kJ/m3 (1250 to 1800 Btu/scf) 12,100 - 22,300 kJ/m3 (325 to 600 Btu/scf) 20,500 - 32,600 kJ/m3 (550 to 875 Btu/scf) 91,300 - 95,000 kJ/m3 (2450 to 2550 Btu/scf) 888,000 kJ/hr (842,000 Btu/hr) Note 1. The ratio of Higher Heating Value (HHV) to Lower Heating Value (LHV) is assumed to be 1.1. Note 2. Onload fuel flows can be up to two times higher than the steady state values. 460000-001 Rev H (December 2005) Page 11 of 16 Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Product Specification Technical Specifications and Descriptions
