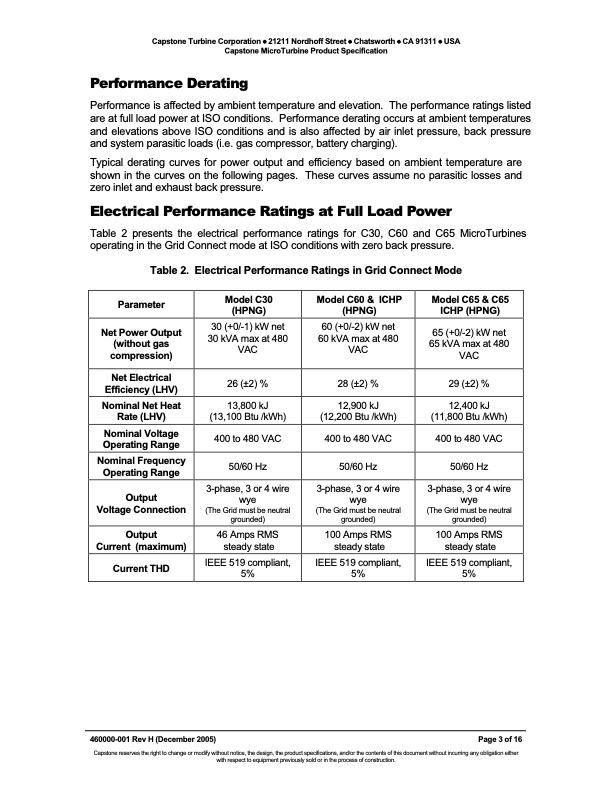

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone MicroTurbine Product Specification Performance Derating Performance is affected by ambient temperature and elevation. The performance ratings listed are at full load power at ISO conditions. Performance derating occurs at ambient temperatures and elevations above ISO conditions and is also affected by air inlet pressure, back pressure and system parasitic loads (i.e. gas compressor, battery charging). Typical derating curves for power output and efficiency based on ambient temperature are shown in the curves on the following pages. These curves assume no parasitic losses and zero inlet and exhaust back pressure. Electrical Performance Ratings at Full Load Power Table 2 presents the electrical performance ratings for C30, C60 and C65 MicroTurbines operating in the Grid Connect mode at ISO conditions with zero back pressure. Table 2. Electrical Performance Ratings in Grid Connect Mode Parameter Net Electrical Efficiency (LHV) Nominal Net Heat Rate (LHV) Nominal Voltage Operating Range Nominal Frequency Operating Range Output Current (maximum) Current THD Model C30 Model C60 & ICHP Model C65 & C65 (HPNG) (HPNG) ICHP (HPNG) 26(±2)% 28(±2)% 29(±2)% Net Power Output (without gas compression) 30 (+0/-1) kW net 30 kVA max at 480 VAC 60 (+0/-2) kW net 60 kVA max at 480 VAC 65 (+0/-2) kW net 65 kVA max at 480 VAC 13,800 kJ (13,100 Btu /kWh) 400 to 480 VAC 50/60 Hz 46 Amps RMS steady state IEEE 519 compliant, 5% 5% 5% 12,900 kJ (12,200 Btu /kWh) 400 to 480 VAC 50/60 Hz 100 Amps RMS steady state 12,400 kJ (11,800 Btu /kWh) 400 to 480 VAC 50/60 Hz 100 Amps RMS steady state Output Voltage Connection 3-phase, 3 or 4 wire wye (The Grid must be neutral grounded) 3-phase, 3 or 4 wire wye (The Grid must be neutral grounded) 3-phase, 3 or 4 wire wye (The Grid must be neutral grounded) IEEE 519 compliant, IEEE 519 compliant, 460000-001 Rev H (December 2005) Page 3 of 16 Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Product Specification Technical Specifications and Descriptions
