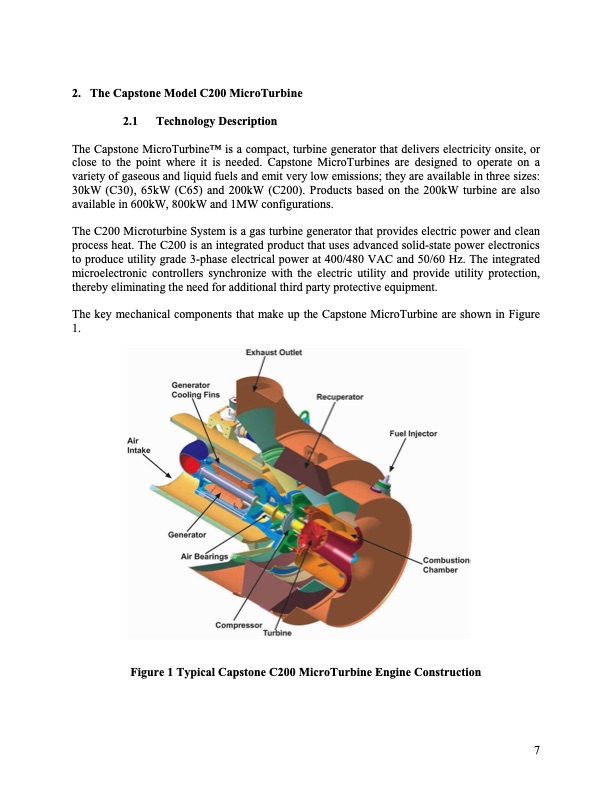

2. The Capstone Model C200 MicroTurbine 2.1 Technology Description The Capstone MicroTurbineTM is a compact, turbine generator that delivers electricity onsite, or close to the point where it is needed. Capstone MicroTurbines are designed to operate on a variety of gaseous and liquid fuels and emit very low emissions; they are available in three sizes: 30kW (C30), 65kW (C65) and 200kW (C200). Products based on the 200kW turbine are also available in 600kW, 800kW and 1MW configurations. The C200 Microturbine System is a gas turbine generator that provides electric power and clean process heat. The C200 is an integrated product that uses advanced solid-state power electronics to produce utility grade 3-phase electrical power at 400/480 VAC and 50/60 Hz. The integrated microelectronic controllers synchronize with the electric utility and provide utility protection, thereby eliminating the need for additional third party protective equipment. The key mechanical components that make up the Capstone MicroTurbine are shown in Figure 1. Figure 1 Typical Capstone C200 MicroTurbine Engine Construction 7PDF Image | NJCAT TECHNOLOGY VERIFICATION CAPSTONE MODEL C200 MICROTURBINE CAPSTONE TURBINE CORPORATION
