Text from PDF Page: 005

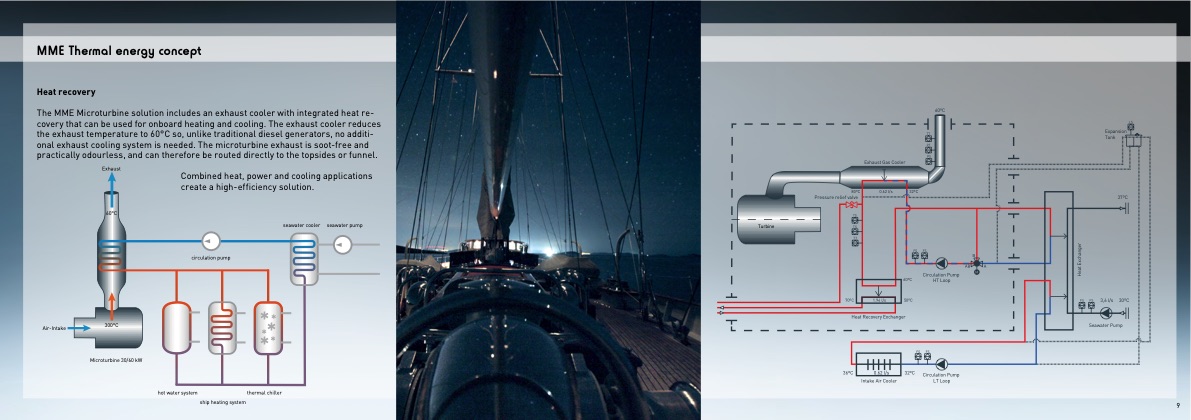

MME Thermal energy concept ship heating system 9 Heat recovery The MME Microturbine solution includes an exhaust cooler with integrated heat re- covery that can be used for onboard heating and cooling. The exhaust cooler reduces the exhaust temperature to 60°C so, unlike traditional diesel generators, no additi- onal exhaust cooling system is needed. The microturbine exhaust is soot-free and practically odourless, and can therefore be routed directly to the topsides or funnel. 60oC TT PT PS LS Expansion Tank 37oC Exhaust 60°C Combined heat, power and cooling applications create a high-efficiency solution. 80oC Pressure relief valve TS TS TT Exhaust Gas Cooler 0.62 l/s 32oC circulation pump seawater cooler seawater pump Turbine FS FS B AB A 60oC Circulation Pump HT Loop 70oC Heat Recovery Exchanger 36o 32oC Intake Air Cooler FS FS 3,6l/s 30oC Seawater Pump 50oC ** Air-Intake 300°C Microturbine 30/60 kW ** * hot water system thermal chiller 1.94 l/s FS FS Circulation Pump LT Loop C 0.62 l/s Heat Exchanger
