Text from PDF Page: 010

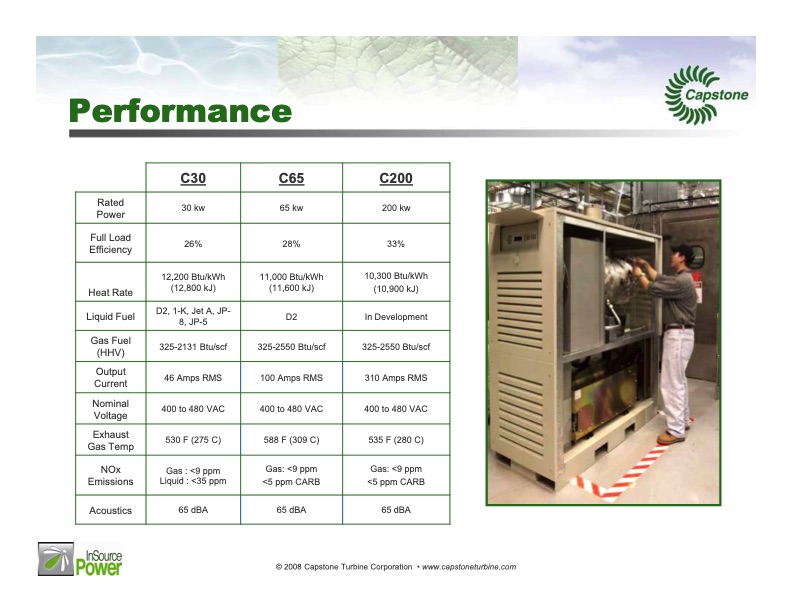

Performance Rated Power 30 kw 26% 65 kw 28% 200 kw Full Load Efficiency 33% Heat Rate Liquid Fuel 12,200 Btu/kWh (12,800 kJ) 11,000 Btu/kWh (11,600 kJ) 10,300 Btu/kWh (10,900 kJ) Gas Fuel (HHV) 325-2131 Btu/scf 325-2550 Btu/scf 325-2550 Btu/scf Output Current 46 Amps RMS 100 Amps RMS 310 Amps RMS Nominal Voltage 400 to 480 VAC 400 to 480 VAC 400 to 480 VAC Exhaust Gas Temp 530 F (275 C) 588 F (309 C) 535 F (280 C) NOx Emissions Gas : <9 ppm Liquid : <35 ppm Gas: <9 ppm <5 ppm CARB Gas: <9 ppm <5 ppm CARB Acoustics 65 dBA 65 dBA 65 dBA C30 C65 C200 D2, 1-K, Jet A, JP- 8, JP-5 D2 In Development © 2008 Capstone Turbine Corporation • www.capstoneturbine.comPDF Image | MicroTurbine Applications for the Oil and Gas Industry
