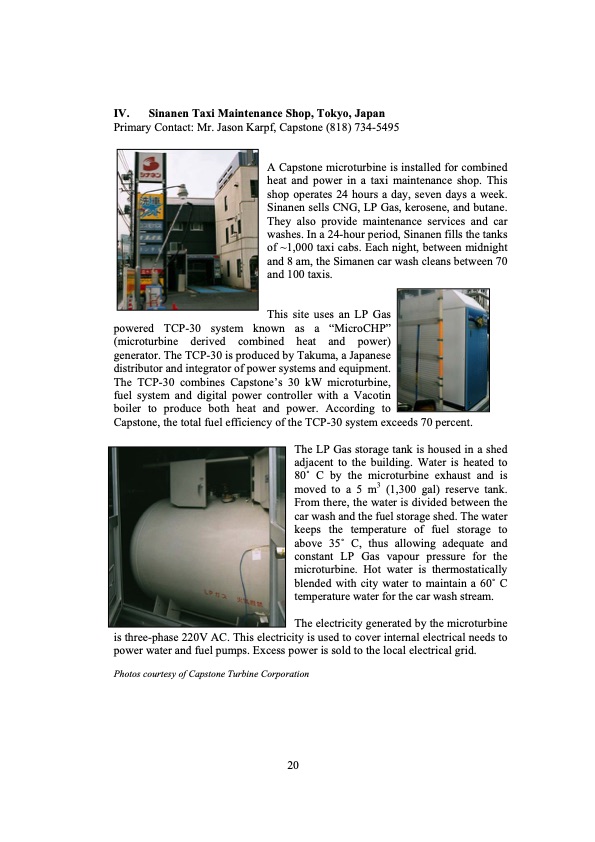

IV. Sinanen Taxi Maintenance Shop, Tokyo, Japan Primary Contact: Mr. Jason Karpf, Capstone (818) 734-5495 A Capstone microturbine is installed for combined heat and power in a taxi maintenance shop. This shop operates 24 hours a day, seven days a week. Sinanen sells CNG, LP Gas, kerosene, and butane. They also provide maintenance services and car washes. In a 24-hour period, Sinanen fills the tanks of ~1,000 taxi cabs. Each night, between midnight and 8 am, the Simanen car wash cleans between 70 and 100 taxis. This site uses an LP Gas powered TCP-30 system known as a “MicroCHP” (microturbine derived combined heat and power) generator. The TCP-30 is produced by Takuma, a Japanese distributor and integrator of power systems and equipment. The TCP-30 combines Capstone’s 30 kW microturbine, fuel system and digital power controller with a Vacotin boiler to produce both heat and power. According to Capstone, the total fuel efficiency of the TCP-30 system exceeds 70 percent. The LP Gas storage tank is housed in a shed adjacent to the building. Water is heated to 80 ̊ C by the microturbine exhaust and is moved to a 5 m3 (1,300 gal) reserve tank. From there, the water is divided between the car wash and the fuel storage shed. The water keeps the temperature of fuel storage to above 35 ̊ C, thus allowing adequate and constant LP Gas vapour pressure for the microturbine. Hot water is thermostatically blended with city water to maintain a 60 ̊ C temperature water for the car wash stream. The electricity generated by the microturbine is three-phase 220V AC. This electricity is used to cover internal electrical needs to power water and fuel pumps. Excess power is sold to the local electrical grid. Photos courtesy of Capstone Turbine Corporation 20PDF Image | Glotec Global Technology Network LP Gas Use in Microturbine Applications
