PDF Publication Title:
Text from PDF Page: 017

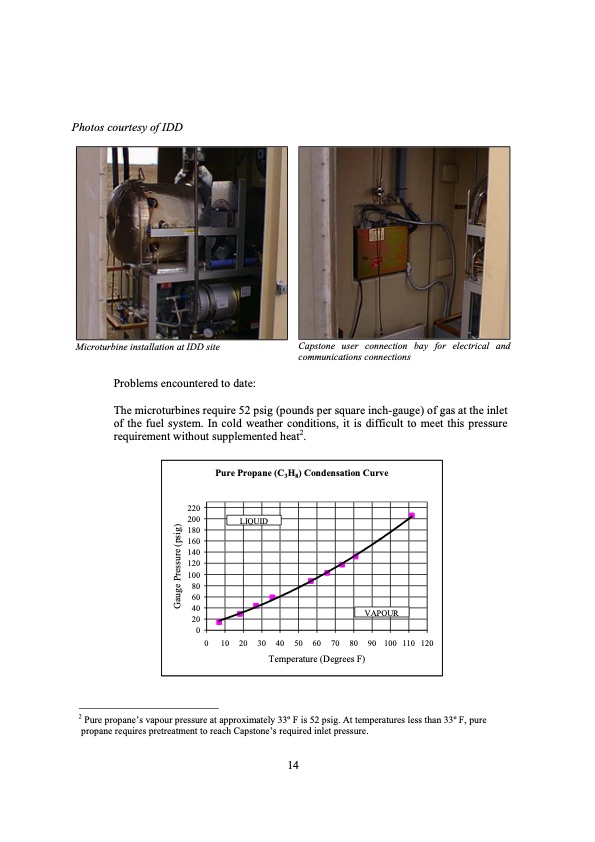

Photos courtesy of IDD Microturbine installation at IDD site Capstone user connection bay for electrical and communications connections Problems encountered to date: The microturbines require 52 psig (pounds per square inch-gauge) of gas at the inlet of the fuel system. In cold weather conditions, it is difficult to meet this pressure requirement without supplemented heat2. Pure Propane (C3H8) Condensation Curve 220 200 180 160 140 120 100 80 60 40 20 0 0 10 20 30 40 50 60 70 80 90100110120 Temperature (Degrees F) LIQUID VAPOUR 2 Pure propane’s vapour pressure at approximately 33o F is 52 psig. At temperatures less than 33o F, pure propane requires pretreatment to reach Capstone’s required inlet pressure. 14 Gauge Pressure (psig)PDF Image | Glotec Global Technology Network LP Gas Use in Microturbine Applications
