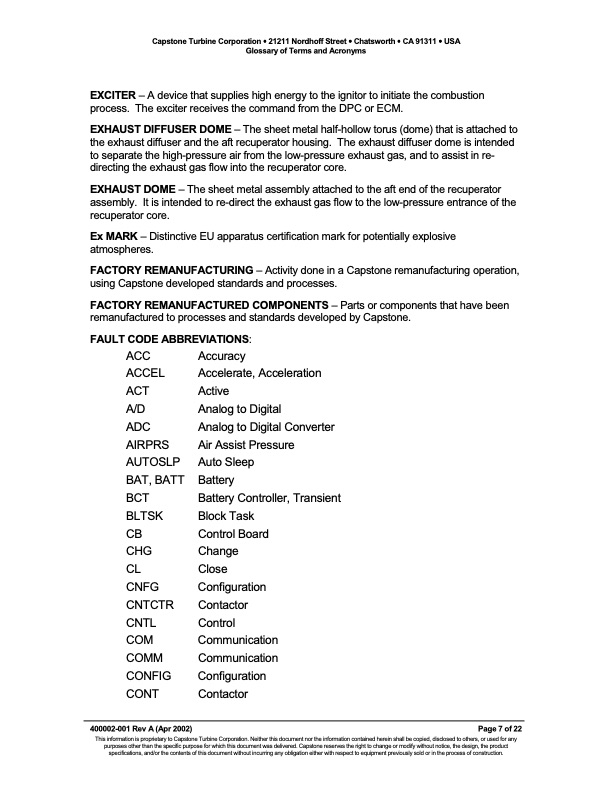

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Glossary of Terms and Acronyms EXCITER ñ A device that supplies high energy to the ignitor to initiate the combustion process. The exciter receives the command from the DPC or ECM. EXHAUST DIFFUSER DOME ñ The sheet metal half-hollow torus (dome) that is attached to the exhaust diffuser and the aft recuperator housing. The exhaust diffuser dome is intended to separate the high-pressure air from the low-pressure exhaust gas, and to assist in re- directing the exhaust gas flow into the recuperator core. EXHAUST DOME ñ The sheet metal assembly attached to the aft end of the recuperator assembly. It is intended to re-direct the exhaust gas flow to the low-pressure entrance of the recuperator core. Ex MARK ñ Distinctive EU apparatus certification mark for potentially explosive atmospheres. FACTORY REMANUFACTURING ñ Activity done in a Capstone remanufacturing operation, using Capstone developed standards and processes. FACTORY REMANUFACTURED COMPONENTS ñ Parts or components that have been remanufactured to processes and standards developed by Capstone. FAULT CODE ABBREVIATIONS: ACC ACCEL ACT A/D ADC AIRPRS AUTOSLP BAT, BATT BCT BLTSK CB CHG CL CNFG CNTCTR CNTL COM COMM CONFIG CONT 400002-001 Rev A (Apr 2002) Accuracy Accelerate, Acceleration Active Analog to Digital Analog to Digital Converter Air Assist Pressure Auto Sleep Battery Battery Controller, Transient Block Task Control Board Change Close Configuration Contactor Control Communication Communication Configuration Contactor This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Page 7 of 22PDF Image | Glossary of Terms and Acronyms Capstone
