PDF Publication Title:
Text from PDF Page: 022

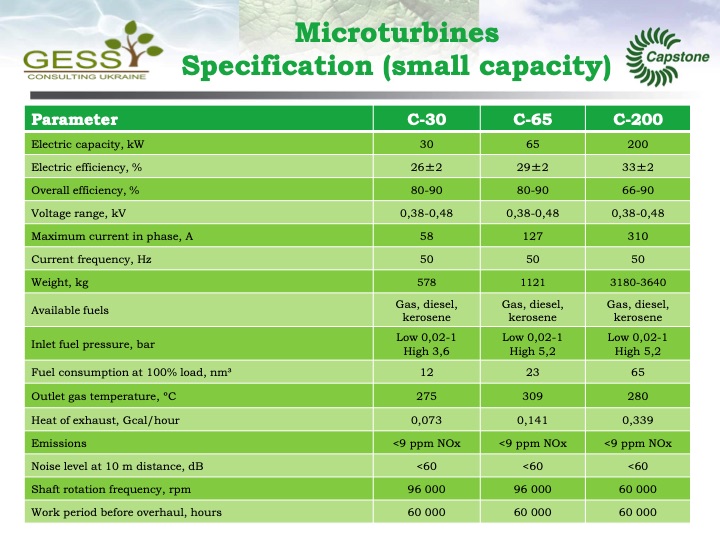

Microturbines Specification (small capacity) Parameter С-30 С-65 С-200 Electric capacity, kW 30 65 200 Electric efficiency, % 26±2 29±2 33±2 Overall efficiency, % 80-90 80-90 66-90 Voltage range, kV 0,38-0,48 0,38-0,48 0,38-0,48 Maximum current in phase, A 58 127 310 Current frequency, Hz 50 50 50 Weight, kg 578 1121 3180-3640 Available fuels Gas, diesel, kerosene Gas, diesel, kerosene Gas, diesel, kerosene Inlet fuel pressure, bar Low 0,02-1 High 3,6 Low 0,02-1 High 5,2 Low 0,02-1 High 5,2 Fuel consumption at 100% load, nm3 12 23 65 Outlet gas temperature, oC 275 309 280 Heat of exhaust, Gcal/hour 0,073 0,141 0,339 Emissions <9 ppm NOx <9 ppm NOx <9 ppm NOx Noise level at 10 m distance, dB <60 <60 <60 Shaft rotation frequency, rpm 96 000 96 000 60 000 Work period before overhaul, hours 60 000 60 000 60 000PDF Image | GESS Consulting Ukraine presents Private Co-generation Biomass Projects
PDF Search Title:
GESS Consulting Ukraine presents Private Co-generation Biomass ProjectsOriginal File Name Searched:
GESS-Private-Projects-eng-full.pdfDIY PDF Search: Google It | Yahoo | Bing
