PDF Publication Title:
Text from PDF Page: 047

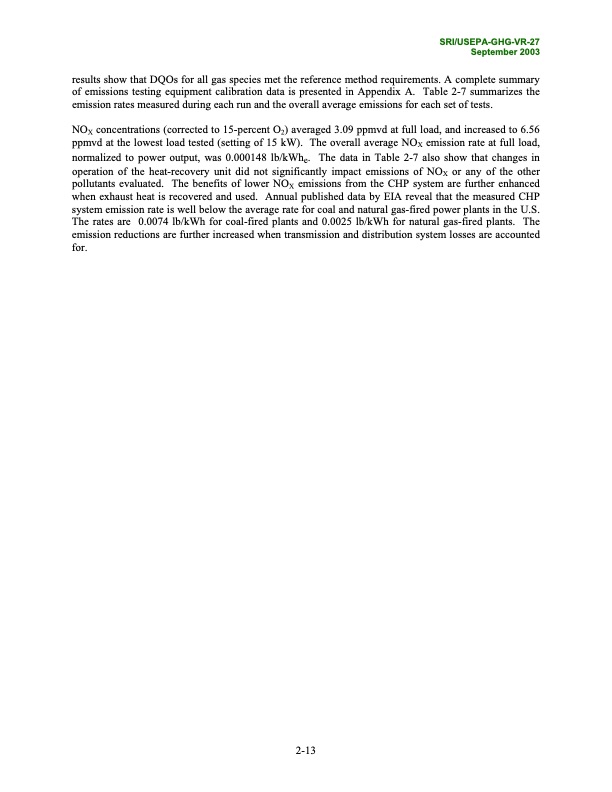

SRI/USEPA-GHG-VR-27 September 2003 results show that DQOs for all gas species met the reference method requirements. A complete summary of emissions testing equipment calibration data is presented in Appendix A. Table 2-7 summarizes the emission rates measured during each run and the overall average emissions for each set of tests. NOX concentrations (corrected to 15-percent O2) averaged 3.09 ppmvd at full load, and increased to 6.56 ppmvd at the lowest load tested (setting of 15 kW). The overall average NOX emission rate at full load, normalized to power output, was 0.000148 lb/kWhe. The data in Table 2-7 also show that changes in operation of the heat-recovery unit did not significantly impact emissions of NOX or any of the other pollutants evaluated. The benefits of lower NOX emissions from the CHP system are further enhanced when exhaust heat is recovered and used. Annual published data by EIA reveal that the measured CHP system emission rate is well below the average rate for coal and natural gas-fired power plants in the U.S. The rates are 0.0074 lb/kWh for coal-fired plants and 0.0025 lb/kWh for natural gas-fired plants. The emission reductions are further increased when transmission and distribution system losses are accounted for. 2-13PDF Image | Environmental Technology Verification Report
