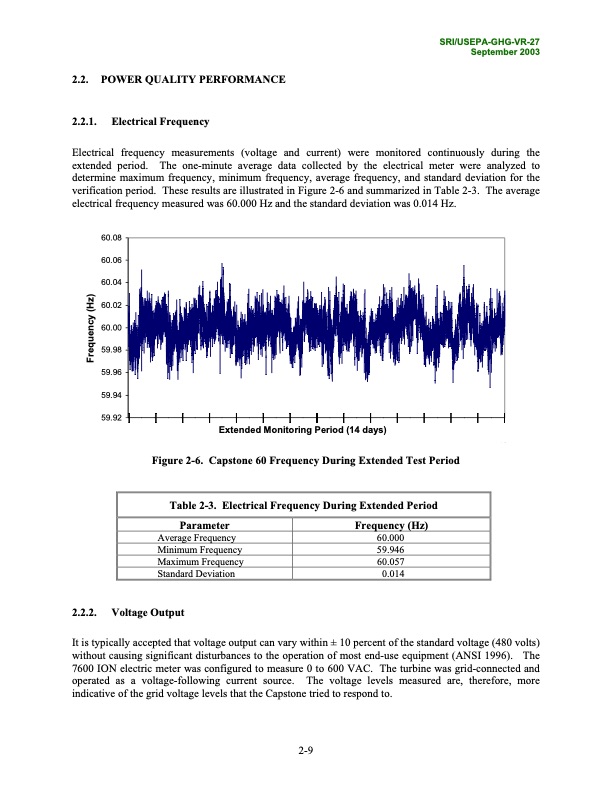

2.2. POWER QUALITY PERFORMANCE 2.2.1. Electrical Frequency Electrical frequency measurements (voltage and current) were monitored continuously during the extended period. The one-minute average data collected by the electrical meter were analyzed to determine maximum frequency, minimum frequency, average frequency, and standard deviation for the verification period. These results are illustrated in Figure 2-6 and summarized in Table 2-3. The average electrical frequency measured was 60.000 Hz and the standard deviation was 0.014 Hz. 2.2.2. Voltage Output 60.08 60.06 60.04 60.02 60.00 59.98 59.96 59.94 59.92 Extended Monitoring Period (14 days) Figure 2-6. Capstone 60 Frequency During Extended Test Period Table 2-3. Electrical Frequency During Extended Period Parameter Average Frequency Minimum Frequency Maximum Frequency Standard Deviation Frequency (Hz) 60.000 59.946 60.057 0.014 It is typically accepted that voltage output can vary within ± 10 percent of the standard voltage (480 volts) without causing significant disturbances to the operation of most end-use equipment (ANSI 1996). The 7600 ION electric meter was configured to measure 0 to 600 VAC. The turbine was grid-connected and operated as a voltage-following current source. The voltage levels measured are, therefore, more indicative of the grid voltage levels that the Capstone tried to respond to. 2-9 SRI/USEPA-GHG-VR-27 September 2003 1 719 1437 2155 2873 3591 4309 5027 5745 6463 7181 7899 8617 9335 10053 10771 11489 12207 12925 13643 14361 15079 15797 16515 17233 17951 18669 19387 20105 Frequency (Hz)PDF Image | Environmental Technology Verification Report
