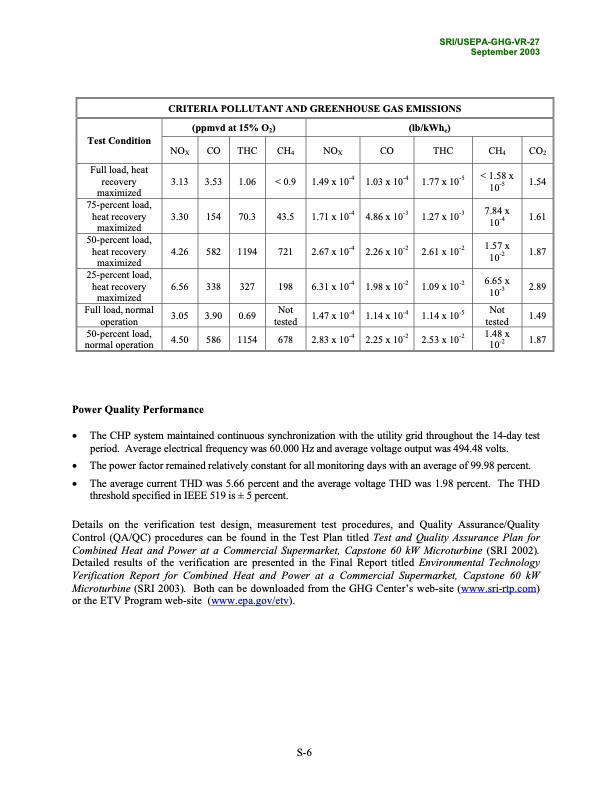

SRI/USEPA-GHG-VR-27 September 2003 CRITERIA POLLUTANT AND GREENHOUSE GAS EMISSIONS Test Condition Full load, heat recovery maximized 75-percent load, heat recovery maximized 50-percent load, heat recovery maximized 25-percent load, heat recovery maximized Full load, normal operation 50-percent load, normal operation NOX CO THC 3.13 3.53 1.06 3.30 154 70.3 4.26 582 1194 6.56 338 327 3.05 3.90 0.69 4.50 586 1154 CH4 < 0.9 43.5 721 198 Not tested 678 NOX 1.49 x 10 1.71 x 10 2.67 x 10 6.31 x 10 1.47 x 10-4 CO 1.03 x 10 -3 -2 -2 -2 (ppmvd at 15% O2) (lb/kWhe) THC CH4 CO2 -5 < 1.58 x 1.77 x 10 10-5 1.54 -3 7.84 x 1.27 x 10 10-4 1.61 -2 1.57 x 2.61 x 10 10-2 1.87 -2 6.65 x 1.09 x 10 10-3 2.89 1.14 x 10-5 Not 1.49 tested -4 -4 -4 -4 -4 -4 4.86 x 10 2.26 x 10 1.98 x 10 1.14 x 10-4 2.83 x 10 2.25 x 10 2.53 x 10 -2 1.48 x 10-2 1.87 Power Quality Performance • The CHP system maintained continuous synchronization with the utility grid throughout the 14-day test period. Average electrical frequency was 60.000 Hz and average voltage output was 494.48 volts. • The power factor remained relatively constant for all monitoring days with an average of 99.98 percent. • The average current THD was 5.66 percent and the average voltage THD was 1.98 percent. The THD threshold specified in IEEE 519 is ± 5 percent. Details on the verification test design, measurement test procedures, and Quality Assurance/Quality Control (QA/QC) procedures can be found in the Test Plan titled Test and Quality Assurance Plan for Combined Heat and Power at a Commercial Supermarket, Capstone 60 kW Microturbine (SRI 2002). Detailed results of the verification are presented in the Final Report titled Environmental Technology Verification Report for Combined Heat and Power at a Commercial Supermarket, Capstone 60 kW Microturbine (SRI 2003). Both can be downloaded from the GHG Center’s web-site (www.sri-rtp.com) or the ETV Program web-site (www.epa.gov/etv). S-6PDF Image | Environmental Technology Verification Report
