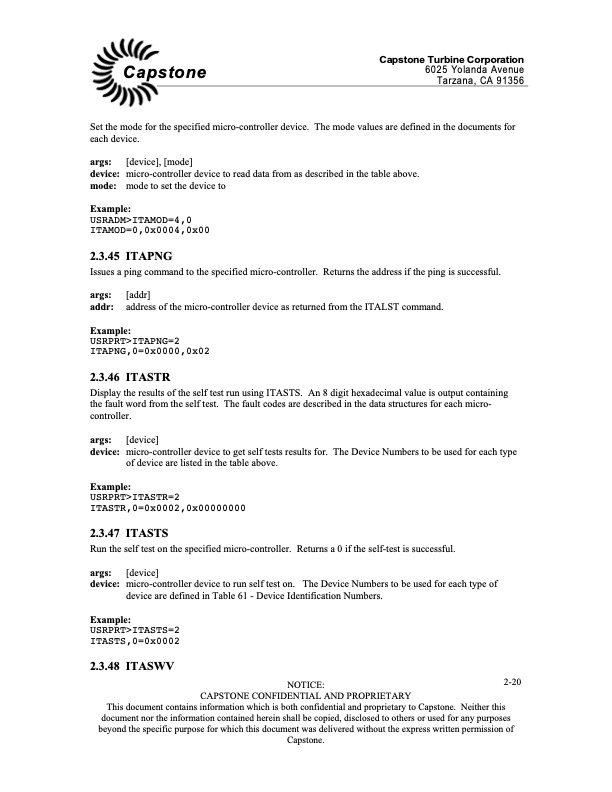

Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 Set the mode for the specified micro-controller device. The mode values are defined in the documents for each device. args: [device], [mode] device: micro-controllerdevicetoreaddatafromasdescribedinthetableabove. mode: mode to set the device to Example: USRADM>ITAMOD=4,0 ITAMOD=0,0x0004,0x00 2.3.45 ITAPNG Issues a ping command to the specified micro-controller. Returns the address if the ping is successful. args: [addr] addr: address of the micro-controller device as returned from the ITALST command. Example: USRPRT>ITAPNG=2 ITAPNG,0=0x0000,0x02 2.3.46 ITASTR Display the results of the self test run using ITASTS. An 8 digit hexadecimal value is output containing the fault word from the self test. The fault codes are described in the data structures for each micro- controller. args: [device] device: micro-controller device to get self tests results for. The Device Numbers to be used for each type of device are listed in the table above. Example: USRPRT>ITASTR=2 ITASTR,0=0x0002,0x00000000 2.3.47 ITASTS Run the self test on the specified micro-controller. Returns a 0 if the self-test is successful. args: [device] device: micro-controller device to run self test on. The Device Numbers to be used for each type of Capstone device are defined in Table 61 - Device Identification Numbers. Example: USRPRT>ITASTS=2 ITASTS,0=0x0002 2.3.48 ITASWV NOTICE: CAPSTONE CONFIDENTIAL AND PROPRIETARY This document contains information which is both confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others or used for any purposes beyond the specific purpose for which this document was delivered without the express written permission of Capstone. 2-20PDF Image | Engineering Specification Communication Protocol
