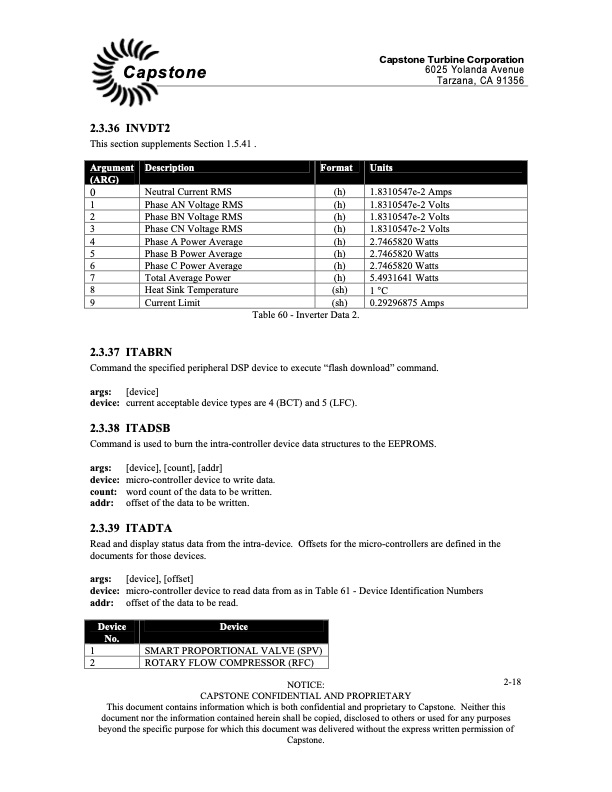

Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 (h) 1.8310547e-2 Amps (h) 1.8310547e-2 Volts (h) 1.8310547e-2 Volts (h) 1.8310547e-2 Volts (h) 2.7465820 Watts (h) 2.7465820 Watts (h) 2.7465820 Watts (h) 5.4931641 Watts (sh) 1 °C (sh) 0.29296875 Amps Table 60 - Inverter Data 2. 2.3.36 INVDT2 This section supplements Section 1.5.41 . Argument (ARG) Description Format Units 0 Neutral Current RMS 1 Phase AN Voltage RMS 2 Phase BN Voltage RMS 3 Phase CN Voltage RMS 4 Phase A Power Average 5 Phase B Power Average 6 Phase C Power Average 7 Total Average Power 8 Heat Sink Temperature 9 Current Limit 2.3.37 ITABRN Command the specified peripheral DSP device to execute “flash download” command. args: [device] device: currentacceptabledevicetypesare4(BCT)and5(LFC). 2.3.38 ITADSB Command is used to burn the intra-controller device data structures to the EEPROMS. args: device: count: addr: 2.3.39 [device], [count], [addr] micro-controllerdevicetowritedata. word count of the data to be written. offset of the data to be written. ITADTA Read and display status data from the intra-device. Offsets for the micro-controllers are defined in the documents for those devices. args: [device], [offset] device: micro-controllerdevicetoreaddatafromasinTable61-DeviceIdentificationNumbers addr: offset of the data to be read. SMART PROPORTIONAL VALVE (SPV) ROTARY FLOW COMPRESSOR (RFC) Device No. Device 1 2 NOTICE: CAPSTONE CONFIDENTIAL AND PROPRIETARY This document contains information which is both confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others or used for any purposes beyond the specific purpose for which this document was delivered without the express written permission of Capstone. 2-18PDF Image | Engineering Specification Communication Protocol
