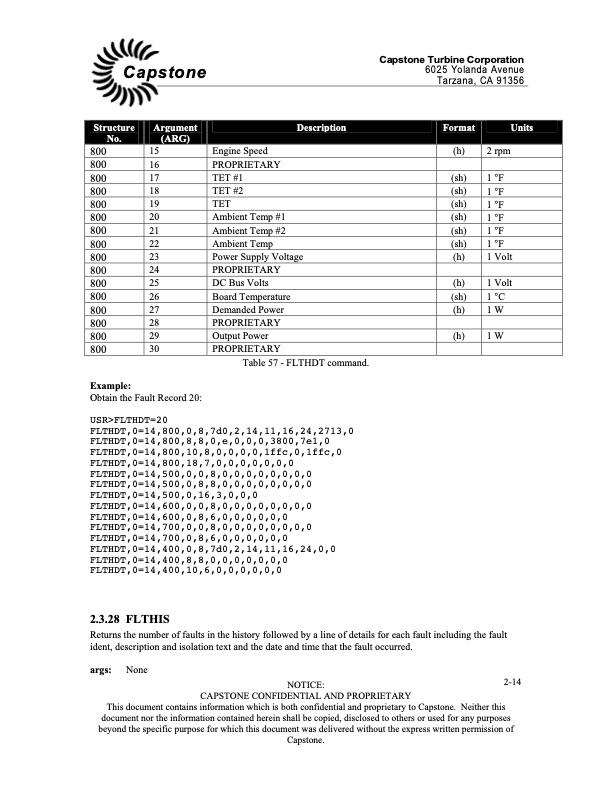

Text from PDF Page: 078

Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 (h) 2 rpm (sh) 1°F (sh) 1°F (sh) 1°F (sh) 1°F (sh) 1°F (sh) 1°F (h) 1 Volt (h) 1 Volt (sh) 1°C (h) 1W (h) 1W Structure No. Argument (ARG) Description Format Units 800 15 800 16 800 17 800 18 800 19 800 20 800 21 800 22 800 23 800 24 800 25 800 26 800 27 800 28 800 29 800 30 Example: Obtain the Fault Record 20: Engine Speed PROPRIETARY TET #1 TET #2 TET Ambient Temp #1 Ambient Temp #2 Ambient Temp Power Supply Voltage PROPRIETARY DC Bus Volts Board Temperature Demanded Power PROPRIETARY Output Power PROPRIETARY Table 57 - FLTHDT command. USR>FLTHDT=20 FLTHDT,0=14,800,0,8,7d0,2,14,11,16,24,2713,0 FLTHDT,0=14,800,8,8,0,e,0,0,0,3800,7e1,0 FLTHDT,0=14,800,10,8,0,0,0,0,1ffc,0,1ffc,0 FLTHDT,0=14,800,18,7,0,0,0,0,0,0,0 FLTHDT,0=14,500,0,0,8,0,0,0,0,0,0,0,0 FLTHDT,0=14,500,0,8,8,0,0,0,0,0,0,0,0 FLTHDT,0=14,500,0,16,3,0,0,0 FLTHDT,0=14,600,0,0,8,0,0,0,0,0,0,0,0 FLTHDT,0=14,600,0,8,6,0,0,0,0,0,0 FLTHDT,0=14,700,0,0,8,0,0,0,0,0,0,0,0 FLTHDT,0=14,700,0,8,6,0,0,0,0,0,0 FLTHDT,0=14,400,0,8,7d0,2,14,11,16,24,0,0 FLTHDT,0=14,400,8,8,0,0,0,0,0,0,0 FLTHDT,0=14,400,10,6,0,0,0,0,0,0 2.3.28 FLTHIS Returns the number of faults in the history followed by a line of details for each fault including the fault ident, description and isolation text and the date and time that the fault occurred. args: None NOTICE: CAPSTONE CONFIDENTIAL AND PROPRIETARY This document contains information which is both confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others or used for any purposes beyond the specific purpose for which this document was delivered without the express written permission of Capstone. 2-14
