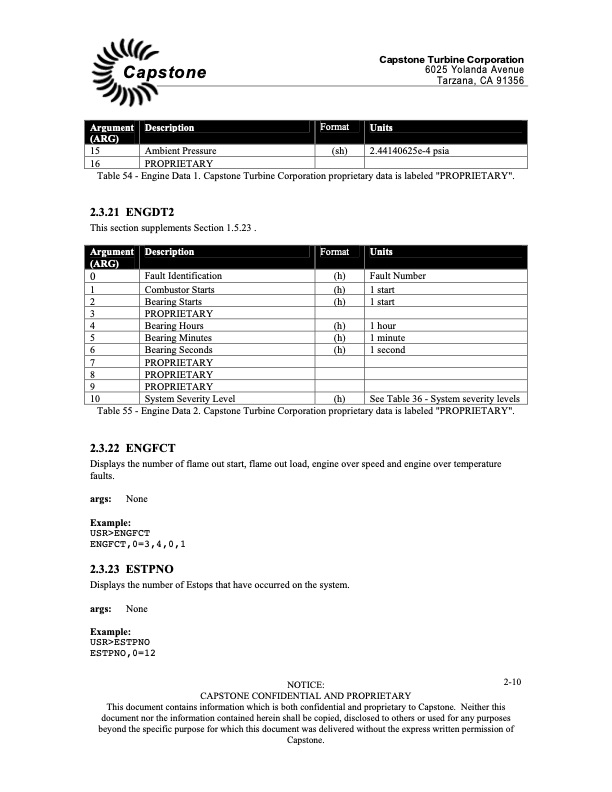

Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 Argument (ARG) Description Format Units 15 16 2.3.21 ENGDT2 This section supplements Section 1.5.23 . 0 Fault Identification 1 Combustor Starts 2 Bearing Starts 3 PROPRIETARY 4 Bearing Hours 5 Bearing Minutes 6 Bearing Seconds 7 PROPRIETARY 8 PROPRIETARY 9 PROPRIETARY 10 System Severity Level (sh) 2.44140625e-4 psia Table 54 - Engine Data 1. Capstone Turbine Corporation proprietary data is labeled "PROPRIETARY". Ambient Pressure PROPRIETARY Argument (ARG) Description Format Units (h) Fault Number (h) 1 start (h) 1 start (h) 1 hour (h) 1 minute (h) 1 second (h) See Table 36 - System severity levels Table 55 - Engine Data 2. Capstone Turbine Corporation proprietary data is labeled "PROPRIETARY". 2.3.22 ENGFCT Displays the number of flame out start, flame out load, engine over speed and engine over temperature faults. args: None Example: USR>ENGFCT ENGFCT,0=3,4,0,1 2.3.23 ESTPNO Displays the number of Estops that have occurred on the system. args: None Example: USR>ESTPNO ESTPNO,0=12 NOTICE: CAPSTONE CONFIDENTIAL AND PROPRIETARY This document contains information which is both confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others or used for any purposes beyond the specific purpose for which this document was delivered without the express written permission of Capstone. 2-10PDF Image | Engineering Specification Communication Protocol
