PDF Publication Title:
Text from PDF Page: 070

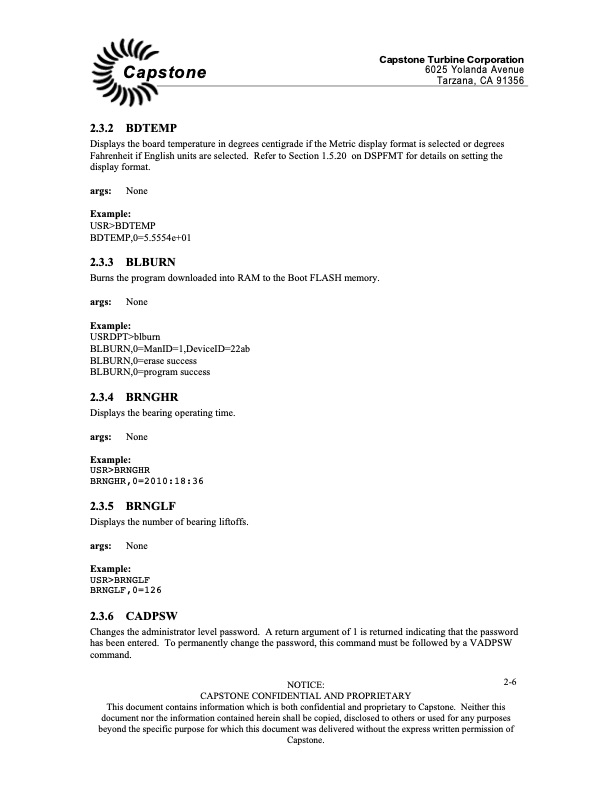

Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 2.3.2 BDTEMP Displays the board temperature in degrees centigrade if the Metric display format is selected or degrees Fahrenheit if English units are selected. Refer to Section 1.5.20 on DSPFMT for details on setting the display format. args: None Example: USR>BDTEMP BDTEMP,0=5.5554e+01 2.3.3 BLBURN Burns the program downloaded into RAM to the Boot FLASH memory. args: None Example: USRDPT>blburn BLBURN,0=ManID=1,DeviceID=22ab BLBURN,0=erase success BLBURN,0=program success 2.3.4 BRNGHR Displays the bearing operating time. args: None Example: USR>BRNGHR BRNGHR,0=2010:18:36 2.3.5 BRNGLF Displays the number of bearing liftoffs. args: None Example: USR>BRNGLF BRNGLF,0=126 2.3.6 CADPSW Changes the administrator level password. A return argument of 1 is returned indicating that the password has been entered. To permanently change the password, this command must be followed by a VADPSW command. 2-6 NOTICE: CAPSTONE CONFIDENTIAL AND PROPRIETARY This document contains information which is both confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others or used for any purposes beyond the specific purpose for which this document was delivered without the express written permission of Capstone.PDF Image | Engineering Specification Communication Protocol
PDF Search Title:
Engineering Specification Communication ProtocolOriginal File Name Searched:
ES0325_DPC_User_Maint_Comm_Maint.pdfDIY PDF Search: Google It | Yahoo | Bing
