PDF Publication Title:
Text from PDF Page: 068

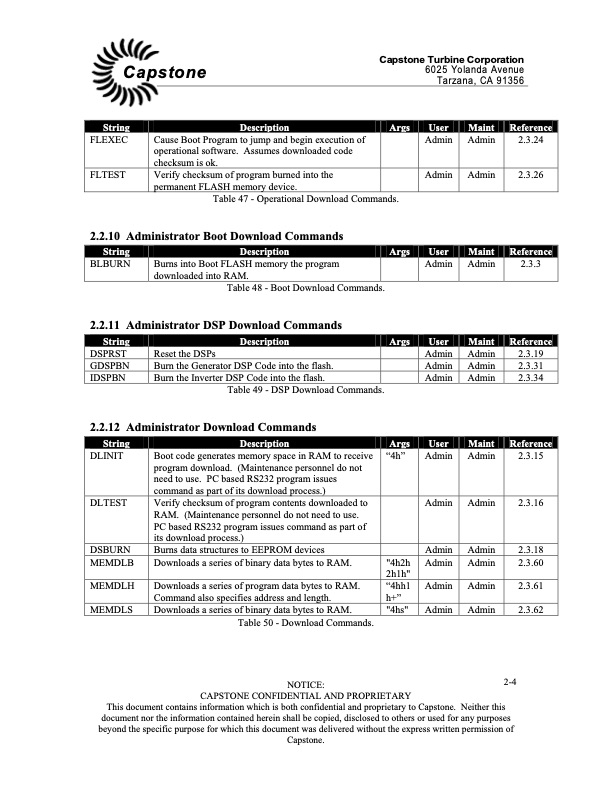

Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 String Description Args User Maint Reference FLEXEC FLTEST Cause Boot Program to jump and begin execution of operational software. Assumes downloaded code checksum is ok. Verify checksum of program burned into the permanent FLASH memory device. Table 47 - Operational Download Commands. Admin Admin Admin Admin Admin Admin Admin Admin Admin Admin Admin Admin 2.3.24 2.3.26 2.3.3 2.3.19 2.3.31 2.3.34 2.2.10 Administrator Boot Download Commands BLBURN Burns into Boot FLASH memory the program downloaded into RAM. Table 48 - Boot Download Commands. 2.2.11 Administrator DSP Download Commands String Description Args User Maint Reference String Description Args User Maint Reference DSPRST GDSPBN IDSPBN Reset the DSPs Burn the Generator DSP Code into the flash. Burn the Inverter DSP Code into the flash. Table 49 - DSP Download Commands. 2.2.12 Administrator Download Commands String Description Args User Maint Reference DLINIT Boot code generates memory space in RAM to receive program download. (Maintenance personnel do not need to use. PC based RS232 program issues command as part of its download process.) “4h” Admin Admin 2.3.15 DLTEST Verify checksum of program contents downloaded to RAM. (Maintenance personnel do not need to use. PC based RS232 program issues command as part of its download process.) Admin Admin 2.3.16 DSBURN MEMDLB MEMDLH MEMDLS Burns data structures to EEPROM devices Downloads a series of binary data bytes to RAM. Downloads a series of program data bytes to RAM. Command also specifies address and length. Downloads a series of binary data bytes to RAM. Table 50 - Download Commands. "4h2h 2h1h" “4hh1 h+” "4hs" Admin Admin Admin Admin Admin Admin Admin Admin 2.3.18 2.3.60 2.3.61 2.3.62 NOTICE: CAPSTONE CONFIDENTIAL AND PROPRIETARY This document contains information which is both confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others or used for any purposes beyond the specific purpose for which this document was delivered without the express written permission of Capstone. 2-4PDF Image | Engineering Specification Communication Protocol
PDF Search Title:
Engineering Specification Communication ProtocolOriginal File Name Searched:
ES0325_DPC_User_Maint_Comm_Maint.pdfDIY PDF Search: Google It | Yahoo | Bing
