Engineering Specification Communication Protocol

PDF Publication Title:

Engineering Specification Communication Protocol ( engineering-specification-communication-protocol )

Previous Page View | Next Page View | Return to Search List

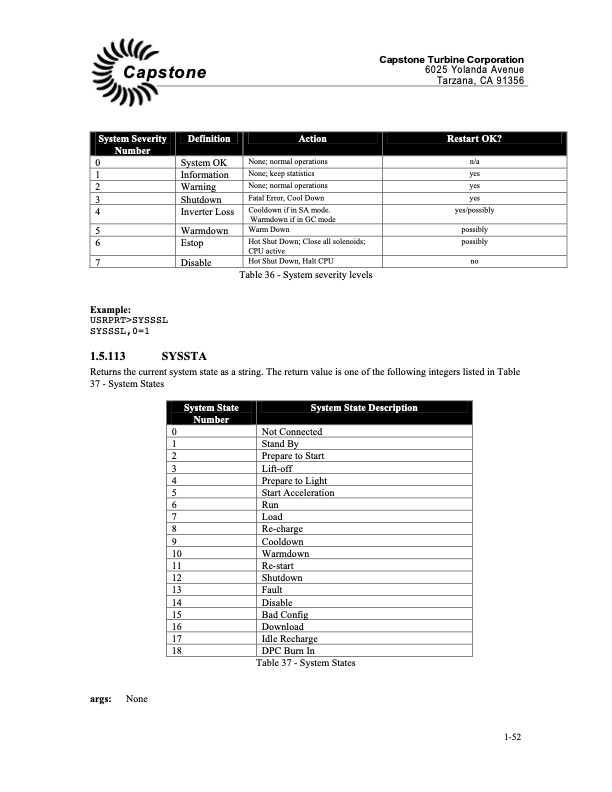

Text from PDF Page: 059

Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 None; normal operations n/a None; keep statistics yes None; normal operations yes Fatal Error, Cool Down yes System Severity Number Definition Action Restart OK? 0 System OK 1 Information 2 Warning 3 Shutdown 4 Inverter Loss 5 Warmdown 6 Estop 7 Disable Example: USRPRT>SYSSSL SYSSSL,0=1 1.5.113 SYSSTA Cooldown if in SA mode. Warmdown if in GC mode Warm Down Hot Shut Down; Close all solenoids; CPU active Hot Shut Down, Halt CPU no Table 36 - System severity levels yes/possibly possibly possibly Returns the current system state as a string. The return value is one of the following integers listed in Table 37 - System States System State Number System State Description 0 Not Connected 1 Stand By 2 Prepare to Start 3 Lift-off 4 Prepare to Light 5 Start Acceleration 6 Run 7 Load 8 Re-charge 9 Cooldown 10 Warmdown 11 Re-start 12 Shutdown 13 Fault 14 Disable 15 Bad Config 16 Download 17 Idle Recharge 18 DPC Burn In Table 37 - System States args: None 1-52

PDF Image | Engineering Specification Communication Protocol

PDF Search Title:

Engineering Specification Communication Protocol

Original File Name Searched:

ES0325_DPC_User_Maint_Comm_Maint.pdf
