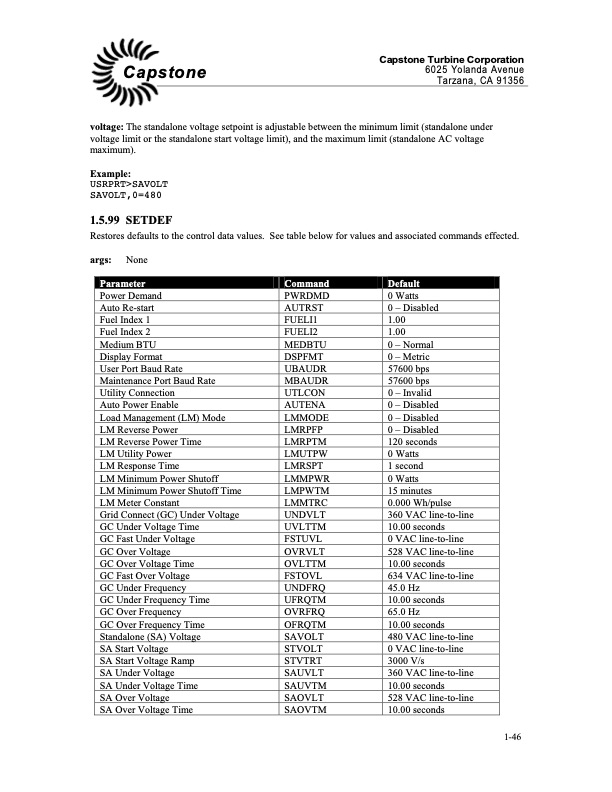

Text from PDF Page: 053

Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 voltage: The standalone voltage setpoint is adjustable between the minimum limit (standalone under voltage limit or the standalone start voltage limit), and the maximum limit (standalone AC voltage maximum). Example: USRPRT>SAVOLT SAVOLT,0=480 1.5.99 SETDEF Restores defaults to the control data values. See table below for values and associated commands effected. args: None Capstone Parameter Command Default Power Demand Auto Re-start Fuel Index 1 Fuel Index 2 Medium BTU Display Format User Port Baud Rate Maintenance Port Baud Rate Utility Connection Auto Power Enable Load Management (LM) Mode LM Reverse Power LM Reverse Power Time LM Utility Power LM Response Time LM Minimum Power Shutoff LM Minimum Power Shutoff Time LM Meter Constant Grid Connect (GC) Under Voltage GC Under Voltage Time GC Fast Under Voltage GC Over Voltage GC Over Voltage Time GC Fast Over Voltage GC Under Frequency GC Under Frequency Time GC Over Frequency GC Over Frequency Time Standalone (SA) Voltage SA Start Voltage SA Start Voltage Ramp SA Under Voltage SA Under Voltage Time SA Over Voltage SA Over Voltage Time PWRDMD AUTRST FUELI1 FUELI2 MEDBTU DSPFMT UBAUDR MBAUDR UTLCON AUTENA LMMODE LMRPFP LMRPTM LMUTPW LMRSPT LMMPWR LMPWTM LMMTRC UNDVLT UVLTTM FSTUVL OVRVLT OVLTTM FSTOVL UNDFRQ UFRQTM OVRFRQ OFRQTM SAVOLT STVOLT STVTRT SAUVLT SAUVTM SAOVLT SAOVTM 0 Watts 0 – Disabled 1.00 1.00 0 – Normal 0 – Metric 57600 bps 57600 bps 0 – Invalid 0 – Disabled 0 – Disabled 0 – Disabled 120 seconds 0 Watts 1 second 0 Watts 15 minutes 0.000 Wh/pulse 360 VAC line-to-line 10.00 seconds 0 VAC line-to-line 528 VAC line-to-line 10.00 seconds 634 VAC line-to-line 45.0 Hz 10.00 seconds 65.0 Hz 10.00 seconds 480 VAC line-to-line 0 VAC line-to-line 3000 V/s 360 VAC line-to-line 10.00 seconds 528 VAC line-to-line 10.00 seconds 1-46
