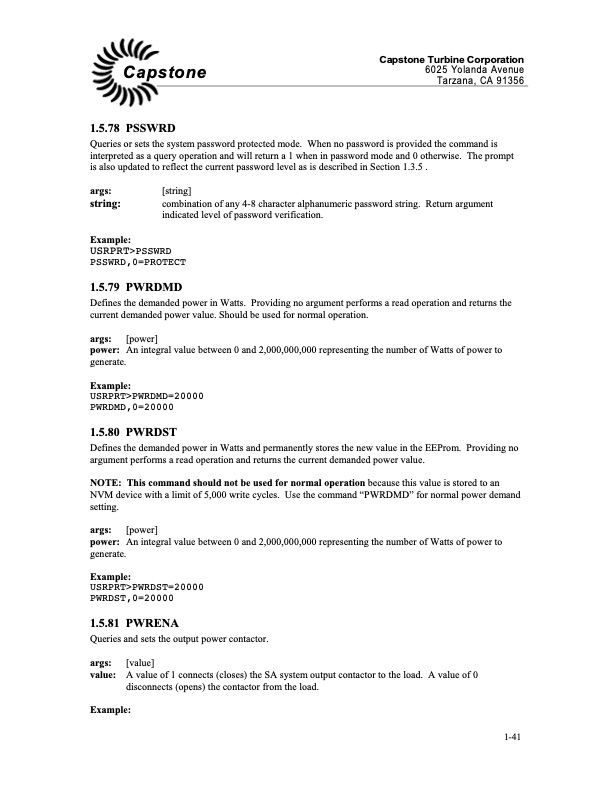

Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 1.5.78 PSSWRD Queries or sets the system password protected mode. When no password is provided the command is interpreted as a query operation and will return a 1 when in password mode and 0 otherwise. The prompt is also updated to reflect the current password level as is described in Section 1.3.5 . args: [string] string: combination of any 4-8 character alphanumeric password string. Return argument indicated level of password verification. Example: USRPRT>PSSWRD PSSWRD,0=PROTECT 1.5.79 PWRDMD Defines the demanded power in Watts. Providing no argument performs a read operation and returns the current demanded power value. Should be used for normal operation. args: [power] power: Anintegralvaluebetween0and2,000,000,000representingthenumberofWattsofpowerto generate. Example: USRPRT>PWRDMD=20000 PWRDMD,0=20000 1.5.80 PWRDST Defines the demanded power in Watts and permanently stores the new value in the EEProm. Providing no argument performs a read operation and returns the current demanded power value. NOTE: This command should not be used for normal operation because this value is stored to an NVM device with a limit of 5,000 write cycles. Use the command “PWRDMD” for normal power demand setting. args: [power] power: Anintegralvaluebetween0and2,000,000,000representingthenumberofWattsofpowerto generate. Example: USRPRT>PWRDST=20000 PWRDST,0=20000 1.5.81 PWRENA Queries and sets the output power contactor. args: [value] value: A value of 1 connects (closes) the SA system output contactor to the load. A value of 0 disconnects (opens) the contactor from the load. Example: 1-41PDF Image | Engineering Specification Communication Protocol
