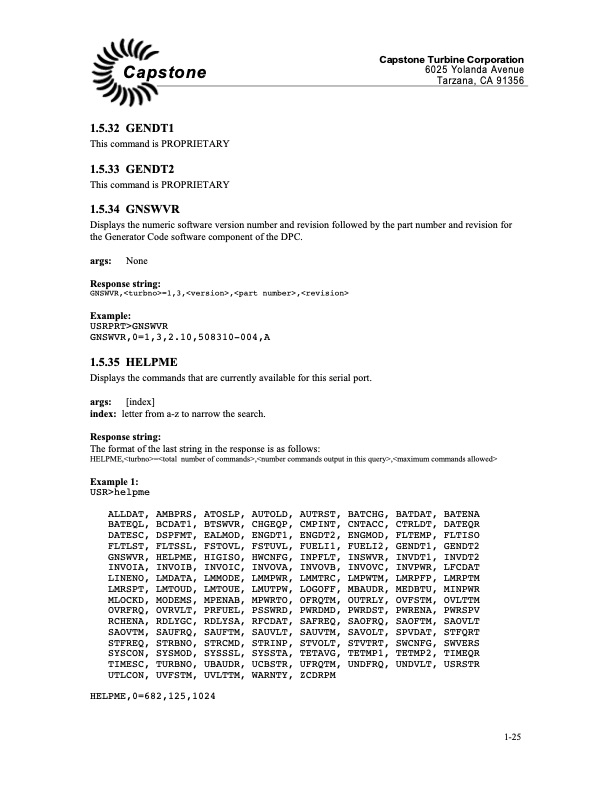

Text from PDF Page: 032

Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 1.5.32 GENDT1 This command is PROPRIETARY 1.5.33 GENDT2 This command is PROPRIETARY 1.5.34 GNSWVR Displays the numeric software version number and revision followed by the part number and revision for the Generator Code software component of the DPC. args: None Response string: GNSWVR,=1,3,,, Example: USRPRT>GNSWVR GNSWVR,0=1,3,2.10,508310-004,A 1.5.35 HELPME Displays the commands that are currently available for this serial port. args: [index] index: letter from a-z to narrow the search. Response string: The format of the last string in the response is as follows: HELPME,=,, Example 1: USR>helpme ALLDAT, AMBPRS, ATOSLP, AUTOLD, AUTRST, BATCHG, BATDAT, BATENA BATEQL, BCDAT1, BTSWVR, CHGEQP, CMPINT, CNTACC, CTRLDT, DATEQR DATESC, DSPFMT, EALMOD, ENGDT1, ENGDT2, ENGMOD, FLTEMP, FLTISO FLTLST, FLTSSL, FSTOVL, FSTUVL, FUELI1, FUELI2, GENDT1, GENDT2 GNSWVR, HELPME, HIGISO, HWCNFG, INPFLT, INSWVR, INVDT1, INVDT2 INVOIA, INVOIB, INVOIC, INVOVA, INVOVB, INVOVC, INVPWR, LFCDAT LINENO, LMDATA, LMMODE, LMMPWR, LMMTRC, LMPWTM, LMRPFP, LMRPTM LMRSPT, LMTOUD, LMTOUE, LMUTPW, LOGOFF, MBAUDR, MEDBTU, MINPWR MLOCKD, MODEMS, MPENAB, MPWRTO, OFRQTM, OUTRLY, OVFSTM, OVLTTM OVRFRQ, OVRVLT, PRFUEL, PSSWRD, PWRDMD, PWRDST, PWRENA, PWRSPV RCHENA, RDLYGC, RDLYSA, RFCDAT, SAFREQ, SAOFRQ, SAOFTM, SAOVLT SAOVTM, SAUFRQ, SAUFTM, SAUVLT, SAUVTM, SAVOLT, SPVDAT, STFQRT STFREQ, STRBNO, STRCMD, STRINP, STVOLT, STVTRT, SWCNFG, SWVERS SYSCON, SYSMOD, SYSSSL, SYSSTA, TETAVG, TETMP1, TETMP2, TIMEQR TIMESC, TURBNO, UBAUDR, UCBSTR, UFRQTM, UNDFRQ, UNDVLT, USRSTR UTLCON, UVFSTM, UVLTTM, WARNTY, ZCDRPM HELPME,0=682,125,1024 1-25
