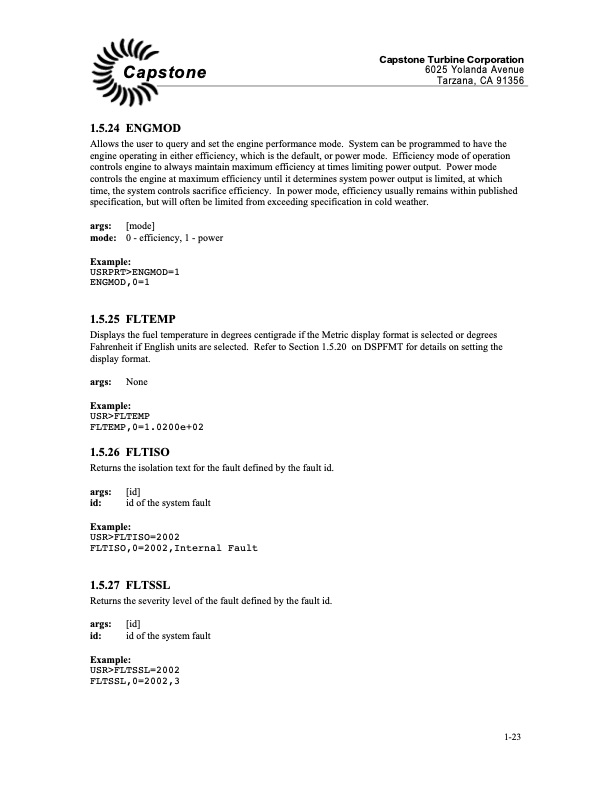

Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 1.5.24 ENGMOD Allows the user to query and set the engine performance mode. System can be programmed to have the engine operating in either efficiency, which is the default, or power mode. Efficiency mode of operation controls engine to always maintain maximum efficiency at times limiting power output. Power mode controls the engine at maximum efficiency until it determines system power output is limited, at which time, the system controls sacrifice efficiency. In power mode, efficiency usually remains within published specification, but will often be limited from exceeding specification in cold weather. args: [mode] mode: 0 - efficiency, 1 - power Example: USRPRT>ENGMOD=1 ENGMOD,0=1 1.5.25 FLTEMP Displays the fuel temperature in degrees centigrade if the Metric display format is selected or degrees Fahrenheit if English units are selected. Refer to Section 1.5.20 on DSPFMT for details on setting the display format. args: None Example: USR>FLTEMP FLTEMP,0=1.0200e+02 1.5.26 FLTISO Returns the isolation text for the fault defined by the fault id. args: [id] id: id of the system fault Example: USR>FLTISO=2002 FLTISO,0=2002,Internal Fault 1.5.27 FLTSSL Returns the severity level of the fault defined by the fault id. args: [id] id: id of the system fault Example: USR>FLTSSL=2002 FLTSSL,0=2002,3 1-23PDF Image | Engineering Specification Communication Protocol
