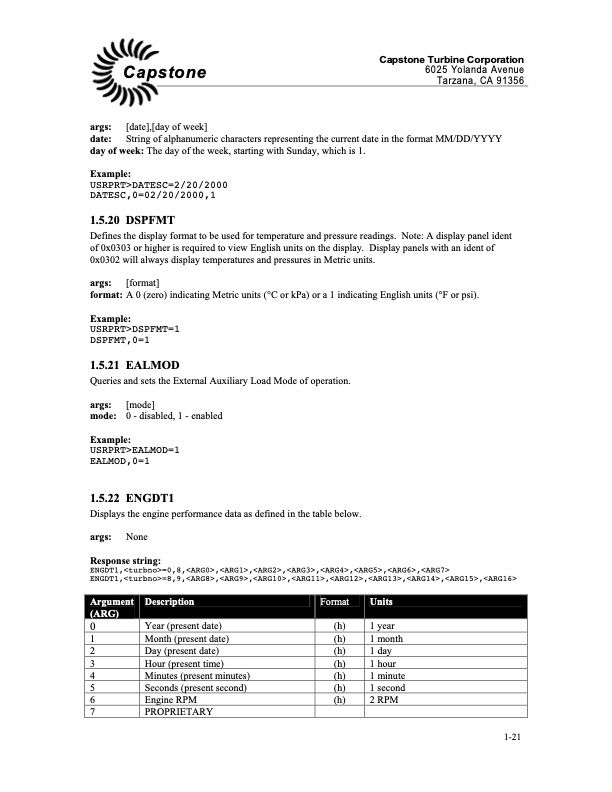

Text from PDF Page: 028

Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 Example: USRPRT>DATESC=2/20/2000 DATESC,0=02/20/2000,1 1.5.20 DSPFMT Defines the display format to be used for temperature and pressure readings. Note: A display panel ident of 0x0303 or higher is required to view English units on the display. Display panels with an ident of 0x0302 will always display temperatures and pressures in Metric units. args: [format] format: A 0 (zero) indicating Metric units (°C or kPa) or a 1 indicating English units (°F or psi). Example: USRPRT>DSPFMT=1 DSPFMT,0=1 1.5.21 EALMOD Queries and sets the External Auxiliary Load Mode of operation. args: [mode] mode: 0 - disabled, 1 - enabled Example: USRPRT>EALMOD=1 EALMOD,0=1 1.5.22 ENGDT1 Displays the engine performance data as defined in the table below. args: None Response string: ENGDT1,=0,8,,,,,,,, ENGDT1,=8,9,,,,,,,,, Capstone args: date: day of week: The day of the week, starting with Sunday, which is 1. [date],[day of week] String of alphanumeric characters representing the current date in the format MM/DD/YYYY Argument (ARG) Description Format Units 0 Year (present date) 1 Month (present date) 2 Day (present date) 3 Hour (present time) 4 Minutes (present minutes) 5 Seconds (present second) 6 Engine RPM 7 PROPRIETARY (h) 1 year (h) 1 month (h) 1 day (h) 1 hour (h) 1 minute (h) 1 second (h) 2 RPM 1-21
