PDF Publication Title:
Text from PDF Page: 026

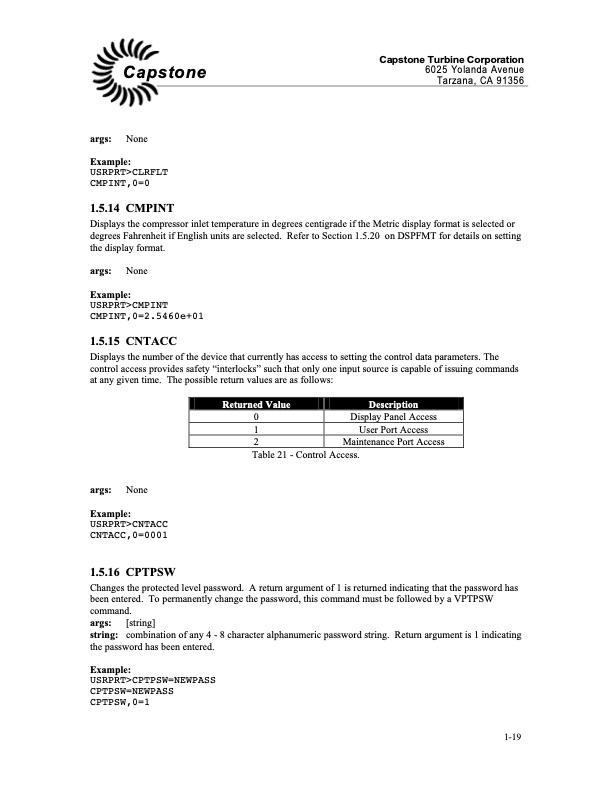

Capstone Capstone Turbine Corporation 6025 Yolanda Avenue Tarzana, CA 91356 args: None Example: USRPRT>CLRFLT CMPINT,0=0 1.5.14 CMPINT Displays the compressor inlet temperature in degrees centigrade if the Metric display format is selected or degrees Fahrenheit if English units are selected. Refer to Section 1.5.20 on DSPFMT for details on setting the display format. args: None Example: USRPRT>CMPINT CMPINT,0=2.5460e+01 1.5.15 CNTACC Displays the number of the device that currently has access to setting the control data parameters. The control access provides safety “interlocks” such that only one input source is capable of issuing commands at any given time. The possible return values are as follows: Returned Value Description 0 1 2 Display Panel Access User Port Access Maintenance Port Access args: None Example: USRPRT>CNTACC CNTACC,0=0001 1.5.16 CPTPSW Table 21 - Control Access. Changes the protected level password. A return argument of 1 is returned indicating that the password has been entered. To permanently change the password, this command must be followed by a VPTPSW command. args: [string] string: combination of any 4 - 8 character alphanumeric password string. Return argument is 1 indicating the password has been entered. Example: USRPRT>CPTPSW=NEWPASS CPTPSW=NEWPASS CPTPSW,0=1 1-19PDF Image | Engineering Specification Communication Protocol
PDF Search Title:
Engineering Specification Communication ProtocolOriginal File Name Searched:
ES0325_DPC_User_Maint_Comm_Maint.pdfDIY PDF Search: Google It | Yahoo | Bing
